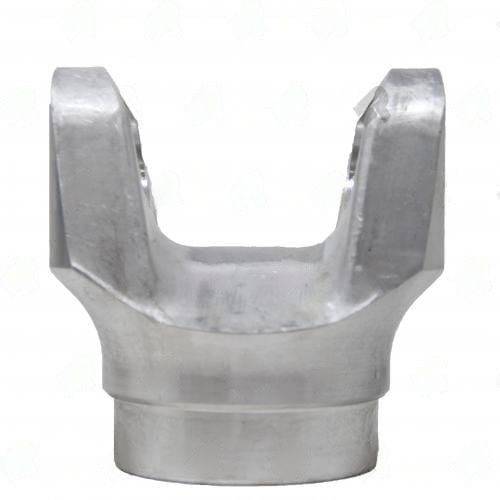

The 3526-306A is a Weld Yoke that belongs to the 1350 Series, making it a crucial component for connecting driveshafts to transmissions or differentials. This yoke is constructed from aluminum, balancing strength and weight effectively. With a butt diameter of 2.757 inches and a tube diameter wall of 3.000 inches with a thickness of 0.125 inches, it is designed for robust applications.
What sets the 3526-306A apart from other yokes is its precise dimensions that ensure compatibility with 1350 Series U-joints. A 1350 yoke has a specific cap diameter and cross width that must match the U-joint for optimal performance. If you mistakenly use a yoke from a different series, such as a 1310, the cap diameter difference will prevent the correct U-joint from fitting, leading to potential failure.
Installation of the 3526-306A requires attention to detail. Ensure proper spline engagement depth and verify phasing with the opposite yoke. This yoke features a center U-joint to weld distance of 2.500 inches, which is critical for maintaining the correct alignment in your driveline setup.
- Butt Diameter: 2.757 inches
- Tube Diameter Wall: 3.000 inches x 0.125 inches
- Center U-Joint to Weld Distance: 2.500 inches
- Material: Aluminum
- Series: 1350
In summary, the 3526-306A is engineered for reliability and performance in demanding driveline applications. Make sure to choose this yoke for your 1350 Series needs to ensure a proper fit and function.
