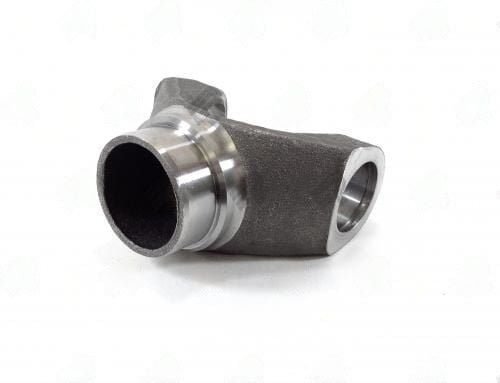

The 3526-201 weld yoke is a robust component designed for 1350 Series applications, featuring a butt diameter of 1.766 inches. This specific measurement is crucial as it ensures a precise fit with compatible U-joints, allowing for optimal torque transfer and minimizing the risk of failure under load. The center U-joint to weld measurement of 2.125 inches is also significant; it dictates the alignment and positioning of the driveshaft within the assembly, ensuring smooth operation during suspension travel.
Constructed from high-quality steel, this yoke is built to withstand the rigors of various applications, particularly in environments where durability is paramount. The extra thick ears provide added strength, making the 3526-201 a reliable choice for heavy-duty use. When installing, it’s essential to check the spline engagement depth and verify phasing with the opposite yoke to prevent any misalignment issues.
- Butt Diameter: 1.766 inches
- Center U J to Weld: 2.125 inches
- Tube Diameter Wall: 2.000 x 0.120 inches
- Material: Steel
- Notes: Extra Thick Ears for enhanced durability
In summary, the 3526-201 weld yoke is engineered for reliability and strength, making it an excellent choice for fabrication shops and performance builders looking to enhance their driveline systems.
