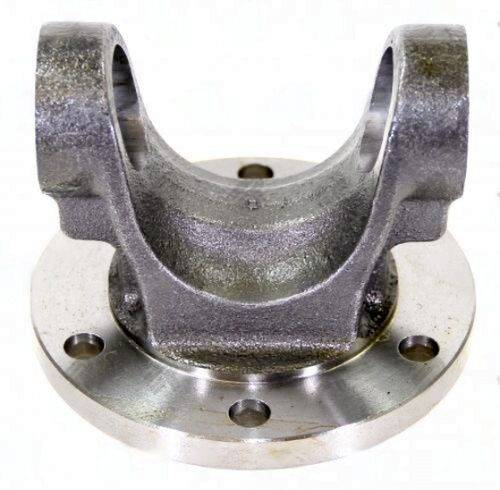

3502-441 Flange Yoke 1350 Series , 2005-2014 Mustang, Replaces CV Joint For 1 Piece Conversion, Includes hardware (3573-1035) 4.455 Outside Diameter (113mm), 3.740 Bolt Circle Diameter
$68.11
2 in stock
Description
Part 3502-441 is a 1350 series flange yoke with a 6-bolt 3.740″ bolt circle, 4.455″ male pilot for direct bolt-on replacement of companion differential flanges. Forged steel, precision-machined, in stock at Universal Driveshafts.
Full Description
Production-Grade 1350 Series Flange Yoke -- Part 3502-441
Custom driveshaft builders and OEM repair technicians share the same requirement: a flange yoke that matches the companion flange exactly and survives the duty cycle of the vehicle. The 3502-441 meets both criteria. Produced in 1350 series geometry with a 3.740" bolt circle and 4.455" pilot, it fits the companion flanges found on a wide range of trucks, SUVs, and performance vehicles without secondary machining or shimming.
Technical Specifications
| Specification | Value |
|---|---|
| Series | 1350 |
| Bolt Circle Dia | 3.740" |
| Bolt Holes | 6 |
| Bolt Hole Dia | 0.433" |
| Pilot Dia | 4.455" (pilot) |
| CJ to Flat | 2.500" |
| Material | Forged Steel |
| Brand | UDS |
| Part Number | 3502-441 |
Companion Flange Compatibility Logic
A companion flange is defined by four measurements: bolt circle diameter, bolt hole count, bolt hole diameter, and pilot bore diameter. The 3502-441 is designed around 3.740" BCD, 6 holes at 0.433", and a 4.455" pilot. If all four of your companion flange dimensions match these values, the 3502-441 installs without modification. Cross-reference your existing yoke or the companion flange directly -- do not rely on vehicle year/make/model alone, as suppliers changed flange specs during production runs.
Step-by-Step Fit Verification
- Measure the bolt circle diameter on your companion flange -- needs to be 3.740"
- Count and measure bolt holes -- 6 holes at 0.433"
- Measure pilot bore -- must accept 4.455" pilot
- Confirm 1350 series u-joint is already installed or on order for the same build
- Verify CJ-to-flat (2.500") will not cause cross interference with companion flange recess
Universal Driveshafts has stocked the 3502-441 as a catalog item because the 3.740" bolt circle, 1350 series configuration is a common spec across numerous platforms. Order with confidence -- this part ships from stock.
Need help with fitment? See our flange yoke guide for bolt patterns, pilots, and measuring tips.
Alternative parts:
Additional information
| Bolt circle dia | 3.740 |
|---|---|
| Bolt hole dia | 0.433 |
| Cj to flat | 2.500 |
| Partn number | 3502-441 |
| Pilot dia | 4.455, OD |
| Series | 1350 |
| Bolt Holes | 6 |
