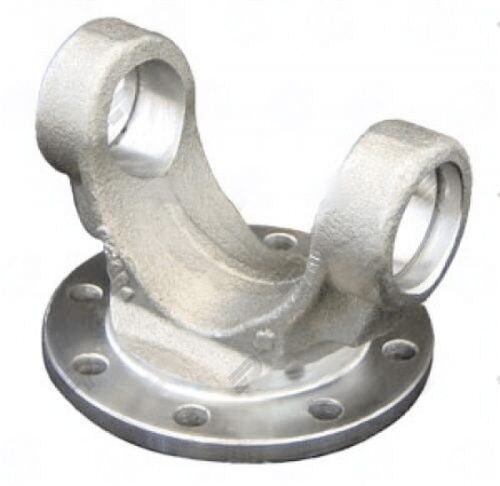

3502-1088 – Flange Yokes – 1350 Series – Bolt Circle Dia 3.307″ – Pilot Dia 3.937, OD
$100.50
0 in stock
Description
Part 3502-1088 is a 1350 series flange yoke with a 8-bolt 3.307″ bolt circle, 3.937″ male pilot for direct bolt-on replacement of companion differential flanges. Forged steel, precision-machined, in stock at Universal Driveshafts.
Full Description
Production-Grade 1350 Series Flange Yoke -- Part 3502-1088
Custom driveshaft builders and OEM repair technicians share the same requirement: a flange yoke that matches the companion flange exactly and survives the duty cycle of the vehicle. The 3502-1088 meets both criteria. Produced in 1350 series geometry with a 3.307" bolt circle and 3.937" pilot, it fits the companion flanges found on a wide range of trucks, SUVs, and performance vehicles without secondary machining or shimming.
Technical Specifications
| Specification | Value |
|---|---|
| Series | 1350 |
| Bolt Circle Dia | 3.307" |
| Bolt Holes | 8 |
| Bolt Hole Dia | 0.320" |
| Pilot Dia | 3.937" (pilot) |
| CJ to Flat | 2.598" |
| Material | Forged Steel |
| Brand | UDS |
| Part Number | 3502-1088 |
Companion Flange Compatibility Logic
A companion flange is defined by four measurements: bolt circle diameter, bolt hole count, bolt hole diameter, and pilot bore diameter. The 3502-1088 is designed around 3.307" BCD, 8 holes at 0.320", and a 3.937" pilot. If all four of your companion flange dimensions match these values, the 3502-1088 installs without modification. Cross-reference your existing yoke or the companion flange directly -- do not rely on vehicle year/make/model alone, as suppliers changed flange specs during production runs.
Step-by-Step Fit Verification
- Measure the bolt circle diameter on your companion flange -- needs to be 3.307"
- Count and measure bolt holes -- 8 holes at 0.320"
- Measure pilot bore -- must accept 3.937" pilot
- Confirm 1350 series u-joint is already installed or on order for the same build
- Verify CJ-to-flat (2.598") will not cause cross interference with companion flange recess
Universal Driveshafts has stocked the 3502-1088 as a catalog item because the 3.307" bolt circle, 1350 series configuration is a common spec across numerous platforms. Order with confidence -- this part ships from stock.
Additional information
| Bolt circle dia | 3.307 |
|---|---|
| Bolt hole dia | 0.320 |
| Cj to flat | 2.598 |
| Partn number | 3502-1088 |
| Pilot dia | 3.937, OD |
| Series | 1350 |
| Bolt Holes | 8 |
