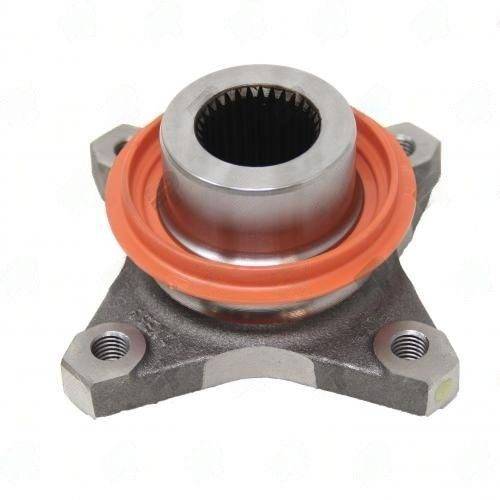

3501-311 – Companion Flanges – 31 Splines – 1.387″ Splines dia – 2.205″ Hub Dia
$96.74
1 in stock
19
People watching this product now!
Description
3501-311 Companion Flange — 1.469 bore | 4.750 bolt circle | 2.953 pilot. Complete pinion shaft fit. Verify bore, keyway, and bolt circle.
Full Description
The 3501-311 companion flange mounts to the pinion shaft and provides the bolt circle that the driveshaft flange yoke attaches to. It's the pinion-side interface — bore and keyway match the pinion shaft, bolt circle matches the flange yoke. The 3501-311 companion flange needs to be correct on both ends simultaneously: wrong bore means it won't seat on the shaft; wrong bolt circle means the yoke won't line up.
3501-311 Companion Flange — Bore, Keyway & Bolt Circle
The 3501-311 companion flange specs: 1.469 bore | 4.750 bolt circle | 2.953 pilot. Ford Transit Flex coupler to flange conversion (3502-1859, 4102-1839). Bore must fit the pinion shaft without play — a loose companion flange damages the pinion seal and allows the shaft to wobble at speed. Keyway width must match the pinion shaft keyway exactly. Pilot diameter centers the flange yoke on the companion flange mounting face.
When replacing a 3501-311 companion flange, inspect the pinion seal at the same time. A worn seal that's been leaking may have softened the pinion shaft contact surface — running a new companion flange against a damaged shaft surface will score the bore quickly. Replace both components while the differential is open.
Key Features
- Bore: 1.469 — fits pinion shaft, no play allowed
- Bolt circle: 4.750 — must match flange yoke bolt pattern
- Pilot dia: 2.953 — centers flange yoke on mounting face
- Bolt holes: 4
- Note: Ford Transit Flex coupler to flange conversion (3502-1859, 4102-1839)
Specifications
- SKU: 3501-311
- Brand: UDS
- Through Hole: 1.469
- Bolt Circle: 4.750
- Pilot Dia: 2.953
- Bolt Holes: 4
- Notes: Ford Transit Flex coupler to flange conversion (3502-1859, 4102-1839)
Additional information
| Bolt circle dia |
4.750 |
|---|---|
| Hub dia |
2.205 |
| Notes |
Ford Transit Flex coupler to flange conversion (3502-1859, 4102-1839) |
| Partn number |
3501-311 |
| Pilot dia |
2.953 |
| Splines count |
31 |
| Splines dia |
1.387 |
| Through hole |
1.469 |
| Bolt Holes |
4 |
| Face to end |
2.500 |
