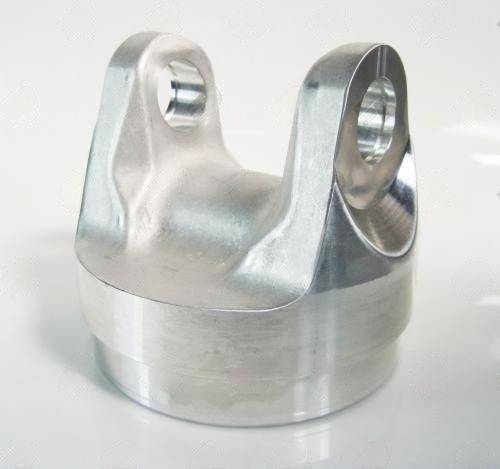

3326-50A – Weld Yokes – 1330 Series – Butt Dia 4.757″ – Tube Dia Wall 5.000X0.125

The 3326-50A is a crucial component in the driveline, specifically designed as a Weld Yoke in the 1330 Series. The 4.757-inch butt diameter ensures a precise fit for connecting to the driveshaft, allowing for optimal torque transfer and alignment. This measurement is critical because it directly influences how well the yoke seats into the mating components, impacting overall driveline efficiency.

Constructed from lightweight aluminum, the 3326-50A balances strength and weight, making it ideal for applications where reducing mass is essential without sacrificing durability. The tube diameter of 5.000 inches with a wall thickness of 0.125 inches provides a robust structure while keeping the overall weight manageable.

Another important dimension is the center U-joint to weld distance of 2.875 inches. This measurement is vital for ensuring proper alignment during installation, which helps prevent premature wear or failure of the U-joint. When installing the 3326-50A, always check the spline engagement depth and ensure that the phasing aligns with the opposite yoke.

• Verify the 1330 Series compatibility for proper fit.
• Ensure the butt diameter of 4.757 inches matches your application.
• Check the tube wall thickness of 0.125 inches for structural integrity.
• Confirm the center U-joint to weld distance of 2.875 inches for alignment.

In summary, the 3326-50A is a reliable choice for those needing a lightweight yet durable weld yoke that fits within the 1330 Series specifications.
