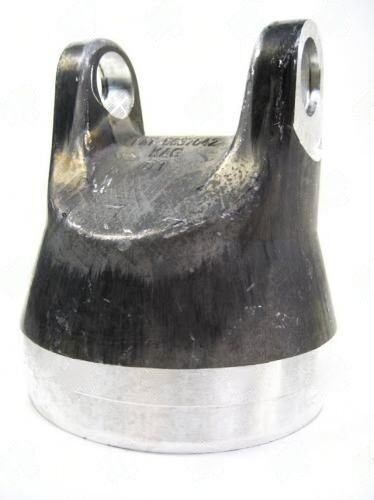

3326-501A – Weld Yokes – 1330 Series – Butt Dia 4.888″ – Tube Dia Wall 5.000X0.063

The 3326-501A weld yoke is a critical component in driveline assemblies, particularly for 1330 Series applications. This aluminum yoke features a butt diameter of 4.888 inches, which is engineered to provide a robust connection to the driveshaft while minimizing weight. The tube diameter wall measures 5.000 inches with a thickness of 0.063 inches, ensuring durability without unnecessary bulk.

One of the key dimensions of the 3326-501A is the center U-joint to weld distance of 4.110 inches. This measurement is crucial for proper alignment and phasing with the opposite yoke, which helps in maintaining smooth operation and reducing vibrations. When installing this yoke, it’s essential to ensure that the spline engagement is adequate and that the yoke is not forced into position, as this can lead to premature wear or failure.

• Butt Diameter: 4.888 inches
• Tube Diameter Wall: 5.000X0.063 inches
• Center U-joint to Weld Distance: 4.110 inches
• Material: Aluminum
• Series: 1330

In summary, the 3326-501A weld yoke is designed to meet the demands of low-duty applications while providing a reliable connection in driveline systems. Its specific dimensions and material choice make it a valuable part for any fabrication shop or performance builder looking to optimize their driveline components.
