3190-182 – Cv Double Joints Heads – 1310 CV FLANGE Series – Bolt Circle Dia 3.665 REC – Butt Dia 2.435

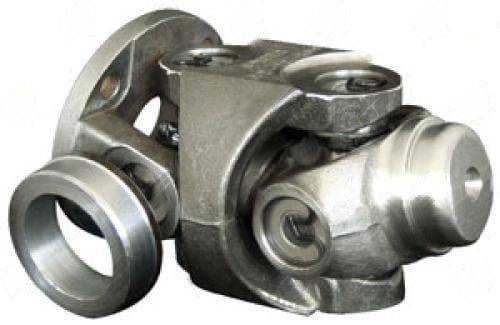

The 3190-182 is a 1310 CV FLANGE series CV double-joint head that cancels velocity error at operating angles where a single Cardan U-joint would cause second-order vibration. Its phased double-joint geometry and centering socket maintain constant output velocity through the full articulation range.

Technical Specifications

Constant-Velocity Principle in Double-Cardan Joints

A single Cardan U-joint operating at an angle produces an output shaft speed that varies sinusoidally at twice the input frequency. This variation is small at low angles (under 3 degrees) but grows rapidly with increasing angle. At 10 degrees, the speed fluctuation is noticeable as a vibration. The double-Cardan design uses two joints in series, phased so each joint variation is equal and opposite. A centering socket maintains the precise bisect angle between the joints to guarantee cancellation. The 3190-182 incorporates this design in the 1310 CV FLANGE series for high-angle shaft applications on trucks and off-road vehicles.

The butt-weld end accepts 2.560X0.067-inch driveshaft tube. Proper weld preparation -- clean, square-cut tube ends with the correct gap -- is essential for a runout-free finished shaft. After welding, dynamic balancing of the assembly ensures vibration-free operation throughout the operating speed range.

Assembly and Maintenance

• Grease both U-joint crosses and the centering socket through Zerk fittings before first use
• Relubricate every 30,000 miles or when operating in water-crossing or dusty conditions
• Confirm bolt circle matches the companion flange before final assembly
• After welding the tube, dynamically balance the completed shaft to specification

Available Now at Universal Driveshafts

The 3190-182 ships from Universal Driveshafts inventory. Our driveline engineers can assist with operating angle calculations, tube selection, and complete shaft design for custom applications. Contact us for technical support before or after purchase.
