3190-181 – Cv Double Joints Heads – 1310 CV FLANGE Series – Bolt Circle Dia 3.575 REC – Butt Dia 2.435
$255.20
0 in stock
20 People watching this product now!
Description

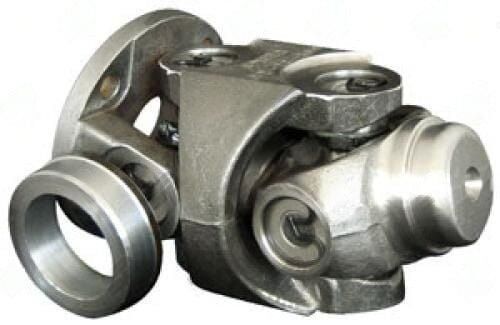

3190-181 Cv Double Joint Head — 3.575 REC bolt circle | 1.808 pilot | 2.435″ butt dia | 5.75″ end-to-weld. Proven high-angle CV driveshaft head assembly.
Full Description
The 3190-181 CV double joint head is the flange-side assembly for constant velocity driveshafts operating at steep angles — SAS builds, long travel suspensions, transfer case drop kits. It provides the ball socket centering mechanism that prevents velocity variation through the joint's full operating range. The 3190-181 CV double joint head requires exact pilot diameter and bolt circle to seat correctly on the axle or diff flange.
3190-181 Cv Double Joint Head — Series: 1310 CV FLANGE. Bolt Circle & Pilot Specs
Series: 1310 CV FLANGE. The 3190-181 CV double joint head specs: 3.575 REC bolt circle | 1.808 pilot | 2.435" butt dia | 5.75" end-to-weld. Toyota/1310CV conversion, includes increase bushing for OEM tubing. Pilot diameter is critical for the centering ball mechanism — a loose pilot allows the CV head to walk off-center at high angles, which defeats the entire purpose of the CV design. End-to-weld factors into compressed driveshaft length calculations.
Before ordering the 3190-181 CV double joint head, measure your existing flange bolt circle and pilot in millimeters or decimal inches. European and Toyota flanges vary by year and application — spec sheet data isn't always reliable on swapped or modified vehicles. Measure the actual flange.
Key Features
- Series: 1310 CV FLANGE
- Bolt circle: 3.575 REC — must match flange bolt pattern exactly
- Pilot dia: 1.808 — centers CV head on flange, critical for CV function
- Butt dia: 2.435" — driveshaft tube connection point
- End-to-weld: 5.75" — factors into compressed shaft length
- Tube fit: 2.560X0.067
- CV double joint design — eliminates velocity variation at steep operating angles
- Note: Toyota/1310CV conversion, includes increase bushing for OEM tubing
Specifications
- SKU: 3190-181
- Brand: UDS
- Series: 1310 CV FLANGE
- Bolt Circle: 3.575 REC
- Pilot Dia: 1.808
- Butt Dia: 2.435"
- End to Weld: 5.75"
- Tube Fit: 2.560X0.067
- Notes: Toyota/1310CV conversion, includes increase bushing for OEM tubing
Additional information
| Bolt circle dia | 3.575 REC |
|---|---|
| Bolt hole dia | 331 |
| Butt dia | 2.435 |
| End to weld | 5.75 |
| Notes | Toyota/1310CV conversion, includes increase bushing for OEM tubing |
| Partn number | 3190-181 |
| Pilot dia | 1.808 |
| Style series | 1310 CV FLANGE |
| Tube dia wall | 2.560X0.067 |
