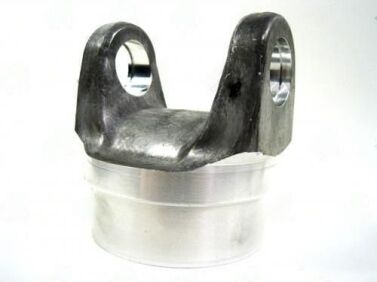

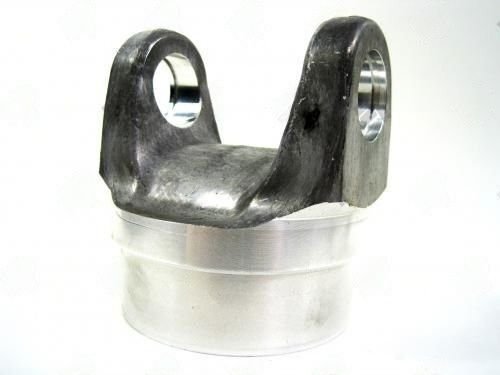

3126-35A – Weld Yokes – 1310 Series – Butt Dia 3.257″ – Tube Dia Wall 3.500X0.125
$91.30
Description
The 3126-35A is a robust weld yoke designed for 1310 Series applications. This aluminum component features a butt diameter of 3.257 inches and a tube diameter wall of 3.500 inches with a thickness of 0.125 inches. The centerline to weld measurement is 2.375 inches, making it a precise fit for various driveline configurations.
What sets the 3126-35A apart from other yokes is its specific design tailored for the 1310 Series. While yokes from different series may appear similar, the 1310 Series yoke has distinct spline dimensions and cap sizes that ensure compatibility with the correct U-joint. Using a yoke that doesn’t match these specifications can lead to improper fitment, excessive wear, or even catastrophic failure during operation.
When installing the 3126-35A, keep these tips in mind:
- Check the spline engagement depth to ensure a secure fit.
- Verify the phasing with the opposite yoke to maintain proper alignment.
- Never force the spline entry; it should slide in smoothly.
This yoke is ideal for light-duty applications and is manufactured by UDS, known for its reliable driveline components. The 3126-35A is a vital link in your driveline, ensuring smooth power transfer and durability.
| Butt dia | 3.257 |
|---|---|
| Center u j to weld | 2.375 |
| Material | ALUMINUM |
| Partn number | 3126-35A |
| Remaining stock | <10 |
| Series | 1310 |
| Tube dia wall | 3.500X0.125 |
| Brand | UDS |
