3126-356A – Weld Yokes – 1310 Series – Butt Dia 3.257″ – Tube Dia Wall 3.500X0.125
$75.43
Description

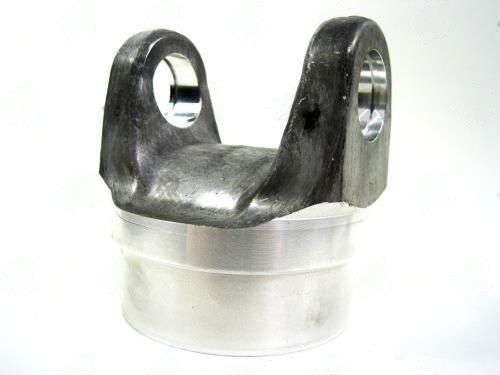

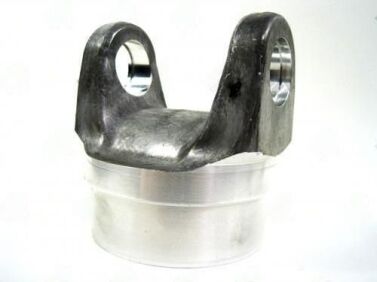

The 3126-356A Weld Yoke is a critical component for any driveline setup, particularly in applications requiring a robust connection between the driveshaft and transmission or differential. This yoke, part of the 1310 Series, features a butt diameter of 3.257 inches and a tube wall diameter of 3.500 inches with a thickness of 0.125 inches. The center U-joint to weld distance measures 2.375 inches, making it an ideal choice for various light-duty applications.
Manufactured from aluminum, the 3126-356A offers a balance of strength and weight, which is essential for performance vehicles where every ounce counts. This yoke is designed to handle the axial movement during suspension travel, ensuring smooth operation under dynamic conditions. Proper installation is crucial; always check the spline engagement depth and verify phasing with the opposite yoke to prevent premature wear or failure.
- Butt Diameter: 3.257 inches
- Tube Diameter Wall: 3.500X0.125 inches
- Center U-Joint to Weld: 2.375 inches
- Material: Aluminum
- Series: 1310
In summary, the 3126-356A Weld Yoke is an essential part for any fabrication shop or performance builder looking to ensure reliable driveline connections. Its specifications align perfectly with the demands of modern driveline systems, making it a dependable choice for your next project.
| Butt dia | 3.257 |
|---|---|
| Center u j to weld | 2.375 |
| Material | ALUMINUM |
| Partn number | 3126-356A |
| Remaining stock | <10 |
| Series | 1310 |
| Tube dia wall | 3.500X0.125 |
| Brand | UDS |
