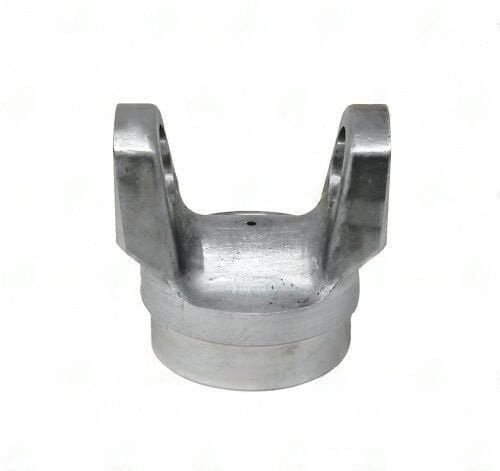

3126-30A – Weld Yokes – 1310 Series – Butt Dia 2.757″ – Tube Dia Wall 3.00X0.125

When you’re about to install the 3126-30A weld yoke, it’s crucial to check a few key specs to ensure a proper fit. This yoke connects your driveshaft to the transmission or differential, and is designed for 1310 Series applications. The butt diameter measures 2.757 inches, while the tube diameter wall is 3.00 inches with a thickness of 0.125 inches. The center U-joint to weld distance is 1.625 inches, so make sure to verify these measurements against your existing components.

Common mistakes during installation include mismatching spline counts or forcing the yoke onto the shaft. Always check the spline engagement depth and ensure proper phasing with the opposite yoke. Using a bit of grease on the splines can help ease installation. Remember, this aluminum yoke is classified as light duty, so avoid over-torquing the fasteners.

• Check butt diameter: 2.757 inches
• Verify tube diameter wall: 3.00X0.125 inches
• Ensure center U-joint to weld distance: 1.625 inches
• Inspect for proper spline engagement
• Use grease for easier installation

By following these steps, you can ensure that the 3126-30A weld yoke performs reliably in your driveline setup. This part is manufactured by UDS, known for their precision engineering in driveline components.
