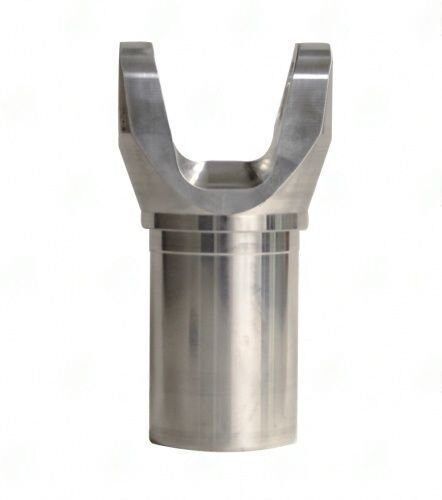

The 3126-25CF weld yoke is a crucial component for any driveline setup requiring a reliable connection. With a butt diameter of 2.500 inches, this yoke fits perfectly into the 1310 Series applications, ensuring compatibility with the corresponding U-joint geometry. This specific measurement is vital as it determines how well the yoke engages with the U-joint, which directly affects torque transfer and overall driveline efficiency.
Constructed from aluminum, the 3126-25CF is lightweight yet robust, making it suitable for light-duty applications. The tube diameter wall measures 2.780 inches with a wall thickness of 0.180 inches, which provides the necessary strength without adding excessive weight. The center UJ to weld distance of 2.250 inches is another critical dimension, as it dictates the positioning of the U-joint within the assembly, ensuring optimal alignment and function.
- Butt Diameter: 2.500 inches
- Center UJ to Weld: 2.250 inches
- Tube Diameter Wall: 2.780 x 0.180 inches
- Material: Aluminum
- Series: 1310
When installing the 3126-25CF, always check the spline engagement depth and ensure proper phasing with the opposite yoke. This attention to detail will help prevent premature wear and potential failure in the driveline system. The 3126-25CF is a dependable choice for those looking to maintain or upgrade their driveline components.
