Brand:
3124-23 – H Yokes – 1310 Series – H BAR TYPE – Boat Application
$74.03
0 in stock
13 People watching this product now!
Description

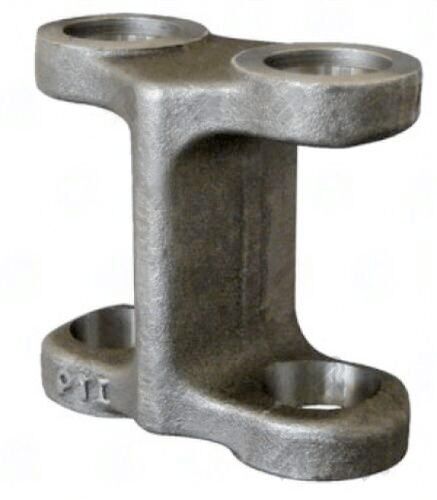

3124-23 H yoke, 1310 series. 1310 series | 3.750″ swing dia | 2.250″” CJ-to-CJ. Double-ended u-joint yoke — specific marine and custom drivetrain applications.
Full Description
The 3124-23 is an H-bar style yoke, 1310 series. It accepts two u-joint crosses -- one at each end -- and is used in specific marine, agricultural, or custom drivetrain configurations.
3124-23 H Yoke -- 1310 Series Dimensions
1310 series | 3.750" swing dia | 2.250"" CJ-to-CJ. H BAR TYPE , USED IN A BOAT APPLICATIONS. CJ-to-CJ spacing must match your application's required u-joint spacing.
Key Features
- Series: 1310 -- both ends accept this series cross
- Swing dia: 3.750" -- clearance dimension
- CJ-to-CJ: 2.250"" -- spacing between both u-joint positions
- H-bar double-ended yoke -- accepts u-joints at both ends, used in specific drivetrain configurations
- Note: H BAR TYPE , USED IN A BOAT APPLICATIONS
Specifications
- SKU: 3124-23
- Brand: UDS
- Series: 1310
- Swing Dia: 3.750"
- CJ to CJ: 2.250""
- Notes: H BAR TYPE , USED IN A BOAT APPLICATIONS
Additional information
| Partn number | 3124-23 |
|---|---|
| Series | 1310 |
| Notes | H BAR TYPE , USED IN A BOAT APPLICATIONS |
| Brand | UDS |
| Cj to cj | 2.250" |
| Swing dia | 3.750 |
