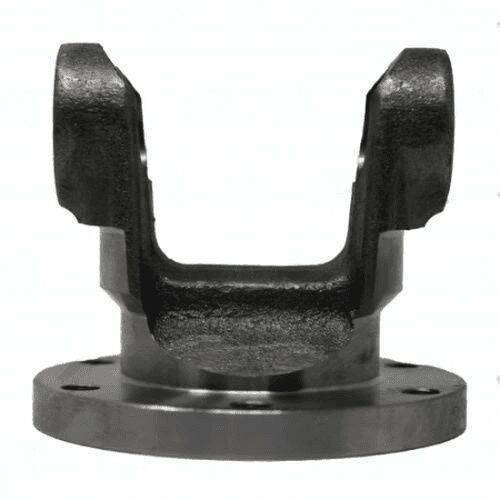

3102-86 Flange Yoke 1310 Series, Outside Diameter 100 mm Jeep CV Joint Conversion Flange
$50.71
10 in stock
Description
Part 3102-86 is a 1310 series flange yoke with a 6-bolt 3.386″ bolt circle, 3.935″ male pilot for direct bolt-on replacement of companion differential flanges. Forged steel, precision-machined, in stock at Universal Driveshafts.
Full Description
3102-86 -- Forged Flange Yoke for 1310 Series Drivetrain Systems
The choice between a slip yoke and a flange yoke is not cosmetic -- it defines how the driveshaft is supported and serviced at that end. The 3102-86 is the flange yoke solution for 1310 series builds, providing a rigid, bolt-on interface with a 3.935" pilot and 6-bolt pattern on a 3.386" bolt circle with 0.328" bolt holes. It eliminates the axial float of a slip yoke, making it the right choice for front driveshafts, short shafts, and any application where positive axial location is required.
Dimensions at a Glance
| Specification | Value |
|---|---|
| Series | 1310 |
| Bolt Circle Dia | 3.386" |
| Bolt Holes | 6 |
| Bolt Hole Dia | 0.328" |
| Pilot Dia | 3.935" (pilot) |
| CJ to Flat | 2.750" |
| Material | Forged Steel |
| Brand | UDS |
| Part Number | 3102-86 |
Forged Steel Advantages
Cast yokes fracture along crystal boundaries under shock load. Forged yokes, including the 3102-86, have aligned grain structure that absorbs impact and distributes stress rather than concentrating it. In off-road, heavy towing, and performance applications, this is the difference between a yoke that survives a jolt and one that does not. The material is carbon steel, processed to the hardness range specified for 1310 series operating conditions.
Measurement Verification Steps
- Use calipers to confirm companion flange bolt circle is 3.386" PCD -- not nominal, actual measured
- Count bolt holes on companion flange and match to the 6 holes on this yoke
- Check pilot diameter: companion flange must accept a 3.935" pilot
- Measure CJ-to-flat on existing yoke; 2.750" is the value to match
- Confirm ear bore size is correct for your 1310 series u-joint cross kit
Direct Replacement and Custom Builds
The 3102-86 ships ready to bolt on. No secondary machining is required for standard companion flanges matching the above specs. For custom driveshaft builders, it offers a predictable starting point with known dimensions, allowing the rest of the shaft to be designed around a confirmed flange interface. In stock at Universal Driveshafts for fast dispatch.
Additional information
| Bolt circle dia | 3.386 |
|---|---|
| Bolt hole dia | 0.328 |
| Cj to flat | 2.750 |
| Partn number | 3102-86 |
| Pilot dia | 3.935, OD |
| Series | 1310 |
| Bolt Holes | 6 |
