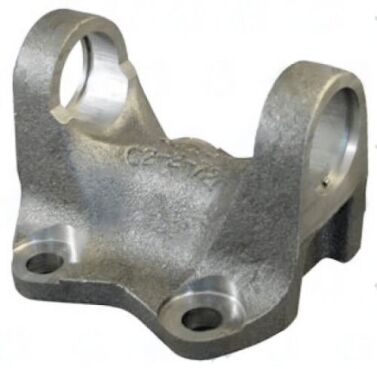

3102-33 Flange Yoke 1310 Series 2-2-1519 Fits: Honda Passport 1994-2002 Isuzu Rodeo 1995-2004 Isuzu Amigo 1998-2000 Flange OE Refs: 8-97020-281-1
$35.57
+50 in stock
Description
Part 3102-33 is a 1310 series flange yoke with a 4-bolt 3.346″ bolt circle, 2.559″ male pilot for direct bolt-on replacement of companion differential flanges. Forged steel, precision-machined, in stock at Universal Driveshafts.
Full Description
Production-Grade 1310 Series Flange Yoke -- Part 3102-33
Custom driveshaft builders and OEM repair technicians share the same requirement: a flange yoke that matches the companion flange exactly and survives the duty cycle of the vehicle. The 3102-33 meets both criteria. Produced in 1310 series geometry with a 3.346" bolt circle and 2.559" male (raised) pilot, it fits the companion flanges found on a wide range of trucks, SUVs, and performance vehicles without secondary machining or shimming.
Technical Specifications
| Specification | Value |
|---|---|
| Series | 1310 |
| Bolt Circle Dia | 3.346" |
| Bolt Holes | 4 |
| Bolt Hole Dia | 0.406" |
| Pilot Dia | 2.559" (male (raised) pilot) |
| CJ to Flat | 1.766" |
| Material | Forged Steel |
| Brand | UDS |
| Part Number | 3102-33 |
Companion Flange Compatibility Logic
A companion flange is defined by four measurements: bolt circle diameter, bolt hole count, bolt hole diameter, and pilot bore diameter. The 3102-33 is designed around 3.346" BCD, 4 holes at 0.406", and a 2.559" male (raised) pilot. If all four of your companion flange dimensions match these values, the 3102-33 installs without modification. Cross-reference your existing yoke or the companion flange directly -- do not rely on vehicle year/make/model alone, as suppliers changed flange specs during production runs.
Step-by-Step Fit Verification
- Measure the bolt circle diameter on your companion flange -- needs to be 3.346"
- Count and measure bolt holes -- 4 holes at 0.406"
- Measure pilot bore -- must accept 2.559" male (raised) pilot
- Confirm 1310 series u-joint is already installed or on order for the same build
- Verify CJ-to-flat (1.766") will not cause cross interference with companion flange recess
Universal Driveshafts has stocked the 3102-33 as a catalog item because the 3.346" bolt circle, 1310 series configuration is a common spec across numerous platforms. Order with confidence -- this part ships from stock.
Additional information
| Bolt circle dia | 3.346 |
|---|---|
| Bolt hole dia | 0.406 |
| Cj to flat | 1.766 |
| Partn number | 3102-33 |
| Pilot dia | 2.559, M |
| Series | 1310 |
| Bolt Holes | 4 |
