3102-170 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.346″ – Pilot Dia 1.772-M

3102-170 1310 Series Flange Yoke Bolt Circle 3.346" Pilot 1.772-M

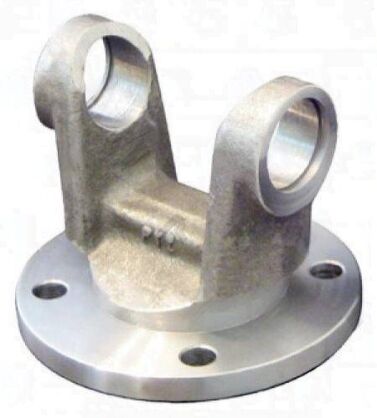

The 3102-170 is a 1310 series flange yoke with a 3.346" bolt circle diameter and a 1.772" male pilot diameter. It uses a 4-bolt pattern with 0.410" bolt hole diameter. The center U-joint to flat dimension measures 2.671".

Specifications

• Part Number: 3102-170
• Series: 1310
• Bolt Circle Dia: 3.346"
• Bolt Hole Dia: 0.410"
• Bolt Holes: 4
• Pilot Dia: 1.772-M
• CJ to Flat: 2.671"

When ordering the 3102-170, verify the companion flange bolt circle is 3.346" and the pilot bore is 1.772". The 0.410" bolt hole diameter is shared with several other flange yokes in this series—the distinguishing dimension here is the 3.346" bolt circle combined with the 2.671" CJ to flat. Confirm both dimensions against the companion flange and driveshaft assembly.

The 1310 series ears accept a 1310 series U-joint. The 2.671" CJ to flat is a longer offset than typical 1.6"–1.75" configurations in this series; account for this dimension when calculating the effective driveshaft length. Match the bolt circle (3.346"), pilot (1.772" M), and CJ to flat (2.671") to the application before ordering the 3102-170.
