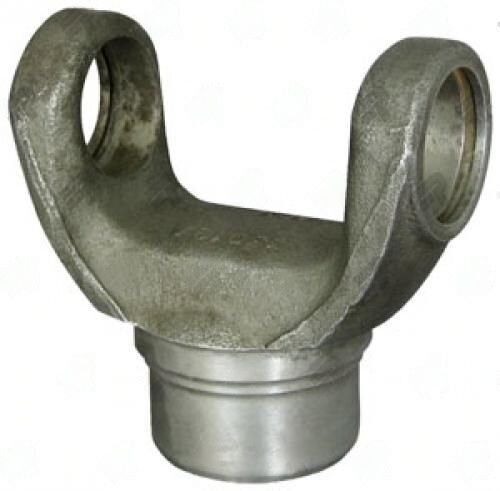

3026-17 – Weld Yokes – 1300 Series – Butt Dia 1.571″ – Tube Dia Wall 1.750X0.095

When you’re ready to install the 3026-17 Weld Yoke, it’s crucial to check the specifications carefully. This yoke is built from steel and designed for 1300 Series applications, making it a reliable choice for connecting your driveshaft to the transmission or differential. The butt diameter measures 1.571 inches, while the center U J to weld distance is 1.688 inches. Before you start, ensure that the tube diameter wall of 1.750 inches by 0.095 inches fits your setup.

Here are some key installation tips:

• Verify the spline engagement depth before sliding the yoke onto the shaft.
• Check for proper phasing with the opposite yoke to avoid vibration issues.
• Never force the spline entry; it should slide in smoothly.
• Ensure the weld area is clean and free from contaminants for a strong bond.
• Double-check that the tube diameter wall matches your driveshaft specifications.

Common mistakes include mismatching the series or overlooking the tube diameter wall. The 3026-17 is specifically designed for light-duty applications, so it’s essential to use it within its intended limits. With proper installation, this yoke will deliver reliable performance and longevity in your driveline system. Remember, the right fit and installation technique are key to avoiding premature failure.
