3-70-48X

SKU: 3-70-48X

$33.31

25 in stock

13 People watching this product now!

Description

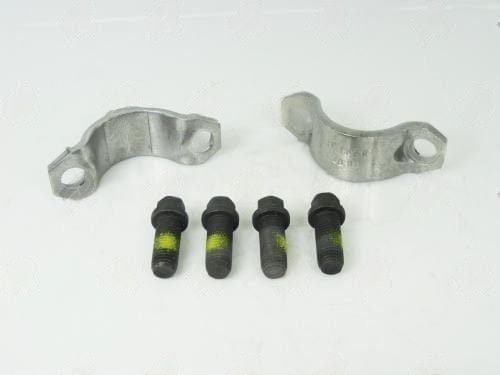

The 3-70-48X Strap Kit is suitable for the 1350 and 1410 series, specifically designed to accommodate metric bolts. It features a cap diameter of 1.188 inches and a center-to-center (C to C) distance of 1.806 inches.

This kit includes bolts that are 0.750 inches long, with a thread diameter of M8 X 1.0. The recommended bolt torque for proper installation is 32 ft-lb. The strap number for this kit is 3-70-89, and the bolt number is 231402. This product is produced by Spicer.

Additional information

Center to center	1.806
Fits cap dia	1.188
Partn number	3-70-48X
Thread dia	M8 X 1.0
Series	1350
