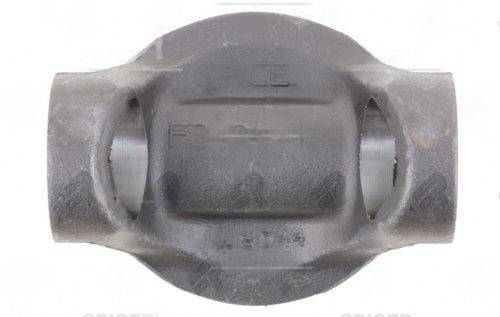

3-28-567 Weld Tube Yoke 1480 Series , Fits: 4.500 x 0.095 Tube , Butt Dia: 3.321 Centerline To Weld: 2.300 Inch

The 3-28-567 weld yoke is a critical component in the 1480 Series, designed for robust driveline applications. This yoke connects the driveshaft to the transmission or differential, ensuring reliable power transfer. With a butt diameter of 3.321 inches and a centerline to weld measurement of 2.035 inches, it provides a secure fit for your assembly needs.

Constructed from durable steel, the 3-28-567 yoke offers both strength and longevity. The tube diameter is 3.500 inches with a wall thickness of 0.095 inches, striking a balance between weight and durability. When selecting a yoke, it’s essential to match the series and dimensions precisely. A yoke from a different series, such as a 1350, may look similar but will not fit correctly due to differences in cap diameter and cross width.

Installation tips for the 3-28-567 include:

• Ensure proper spline engagement depth for optimal performance.
• Verify phasing with the opposite yoke to prevent vibration issues.
• Never force spline entry; it should slide in smoothly.

Using the correct yoke, like the 3-28-567, is vital for maintaining driveline integrity. This yoke is engineered to handle the demands of high-performance applications, making it a reliable choice for fabrication shops and fleet technicians alike.
