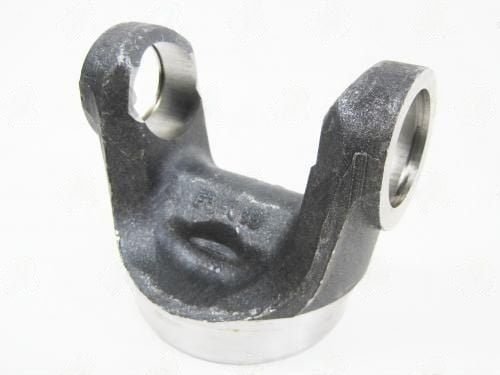

3-28-547 – Weld Yokes – 1480 Series – Butt Dia 3.344″ – Tube Dia Wall 3.500X0.083

The 3-28-547 Weld Yoke is a vital component for any driveline system, particularly in heavy-duty applications where strength and reliability are paramount. This yoke belongs to the 1480 Series from Spicer, known for its robust construction and compatibility with various driveline configurations. With a butt diameter of 3.344 inches, it ensures a secure fit during installation, while the tube diameter of 3.500 inches and wall thickness of 0.083 inches strike a balance between durability and weight.

In practical terms, the 3-28-547 connects the driveshaft to the transmission or differential, allowing for the necessary axial movement during suspension travel. This is particularly important in off-road or performance vehicles where suspension articulation can be extreme. The center U-joint to weld measurement of 2.031 inches is designed to accommodate the specific U-joint dimensions, ensuring proper phasing and alignment with the opposite yoke.

When installing the 3-28-547, it’s crucial to:

• Check the spline engagement depth for a secure connection.
• Verify phasing with the opposite yoke to prevent vibrations.
• Avoid forcing the spline entry to prevent damage.

Overall, the 3-28-547 is engineered for performance and reliability, making it an essential choice for any serious builder or technician looking to enhance their driveline setup.
