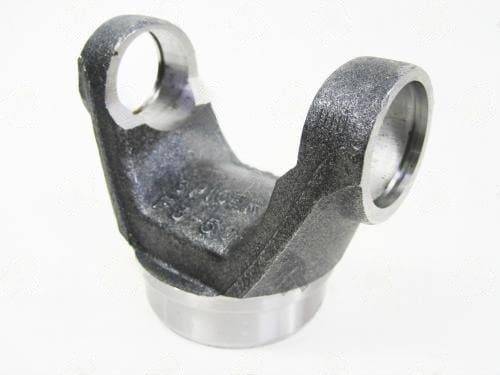

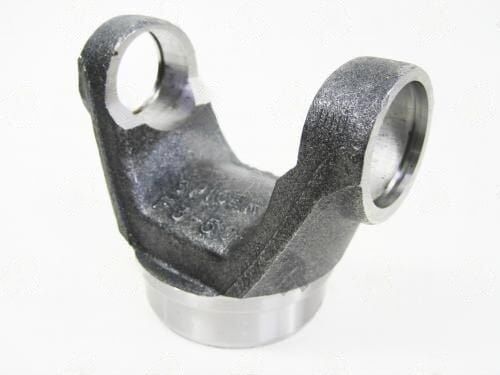

3-28-47 Weld Tube Yoke 1350 Ser’ , Fits: 2.500 X 0.083 , Butt Dia: 2.344 Inch , CL To End: 1.938 Inch

3-28-47 is a robust weld yoke belonging to the 1350 Series, crafted from high-strength steel. This yoke connects your driveshaft to the transmission or differential, ensuring reliable power transfer. Before installation, verify the butt diameter of 3.344 inches and the center U-joint to weld measurement of 1.938 inches to ensure a proper fit.

When working with the 3-28-47, it’s crucial to check the compatibility with your U-joint. The 1350 Series dictates the cap diameter and cross width, so be sure to match these specifications to avoid any misalignment issues. A common mistake is overlooking the spline count and series compatibility; always double-check these details before proceeding.

• Butt Diameter: 3.344 inches
• Center U J to Weld: 1.938 inches
• Tube Diameter Wall: 2.500 x 0.083 inches
• Material: Steel
• Series: 1350

Additionally, remember that this yoke allows for axial movement during suspension travel, which is crucial for maintaining proper driveline geometry. The 3-28-47 is designed to handle the demands of high-performance applications while delivering the strength needed for everyday use. Ensure you torque all fasteners to the manufacturer’s specifications for optimal performance. With the right preparation and attention to detail, installing the 3-28-47 will be a straightforward task.
