3-2-559 Flange Yoke 1410 series, 4x.500 Holes on 4.750BC, 3.750M pilot
$46.52
2 in stock
11 People watching this product now!
Description

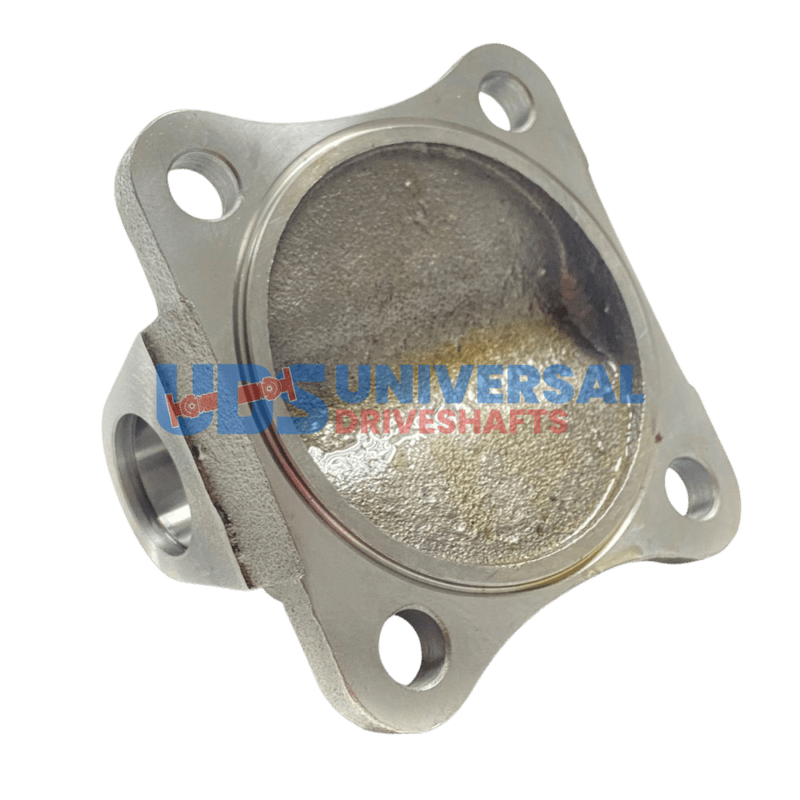

The 3-2-559 Flange Yoke from the 1410 Series is designed for robust performance in heavy-duty applications. It features a male pilot diameter of 3.750 inches and an outside snap ring. With a swing diameter of 5.875 inches and a bolt circle diameter of 4.750 inches, it provides reliable connectivity. The yoke includes 4 drilled bolt holes, each with a diameter of 0.500 inches.
Additional information
| Bolt circle dia | 4.750 |
|---|---|
| Bolt hole dia | 0.500 |
| Cj to flat | 1.500 |
| Partn number | 3-2-559 |
| Pilot dia | 3.750 ,M |
| Series | 1410 |
| Bolt Holes | 4 |
| Swing dia | 5.875 |
