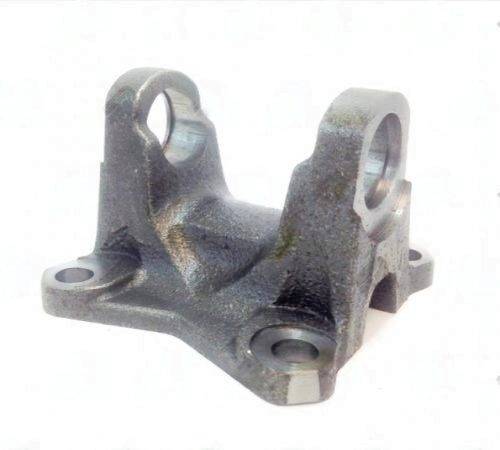

The 3102-216 Flange Yoke, part of the 1310 series, features a 2.162″ female pilot diameter and an outside snap ring. It has a 4.520″ bolt circle with four 0.489″ bolt holes. The yoke supports a 3.219″ U-joint lock-up, with a bearing cap diameter of 1.063″ and a flange face to centerline distance of 2.00″. The swing diameter is 5.310″.
$55.95
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 4.520 |
| Bolt Hole Dia | 0.489, 4HOLES |
| CJ TO FLAT | 2.000 |
| Partn number | 3102-216 |
| Pilot dia | 2.162, F |
| SERIES | 1310 |
8 in stock (can be backordered)
