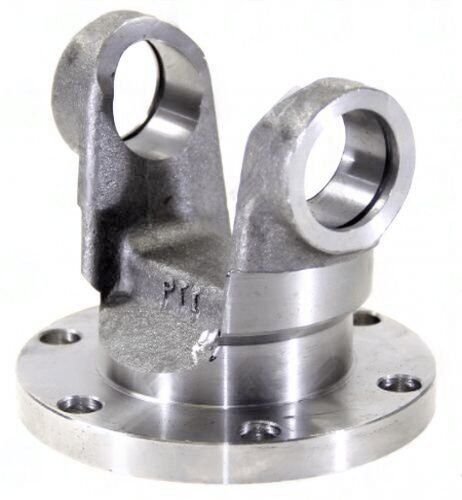

The 3102-391 Flange Yoke is a 1310 series part designed to replace CV joints with a universal joint style shaft. It features a 3.386″ bolt circle, 3.935″ OD pilot, and six 0.415″ holes. It includes a 3.469″ universal joint retaining width and a 1.062″ bearing diameter, ensuring a secure fit and reliable operation.
$37.25
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 3.386 |
| Bolt Hole Dia | 0.415, 6HOLES |
| CJ TO FLAT | 2.592 |
| Partn number | 3102-391 |
| Pilot dia | 3.937, OD |
| SERIES | 1310 |
