3-2-1719 Spicer Flange Yoke 1480 series, 4x.472 Tapped Holes on 4.250 BC, 2.680 F pilot
$69.87
2 in stock
10 People watching this product now!
Description

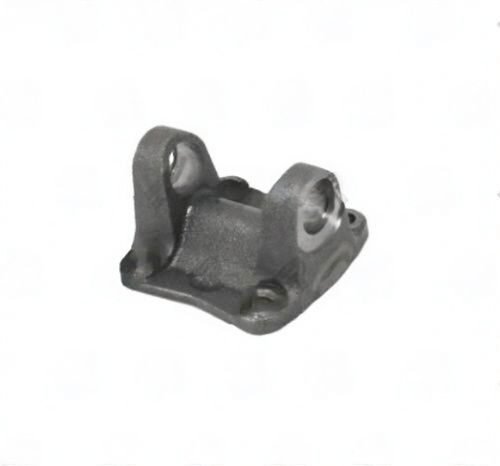

The 3-2-1719 Spicer Flange Yoke from the 1480 Series is designed for robust performance in heavy-duty applications. It features a male pilot diameter of 2.680 inches and an outside snap ring. With a swing diameter of 5.875 inches and a bolt circle diameter of 4.250 inches, it provides reliable connectivity. The yoke includes 4 drilled bolt holes, each with a diameter of 0.410 inches.
Additional information
| Bolt circle dia | 4.250 |
|---|---|
| Bolt hole dia | 0.410 |
| Cj to flat | 1.800 |
| Partn number | 3-2-1719 |
| Pilot dia | 2.680 ,M |
| Series | 1480 |
| Bolt Holes | 4 |
| Swing dia | 5.875 |
