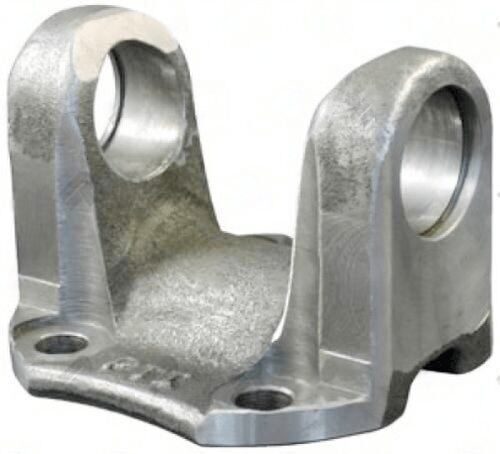

The 3102-20 Flange Yoke, part of the 1310 series, is designed for Nissan applications. It features a 2.950″ bolt circle diameter, a 1.967″ male pilot, and six 0.395″ tapped holes. The yoke supports a universal joint retaining width of 3.469″ with a bearing diameter of 1.062″ and has a centerline to flange face distance of 1.772″
$36.97
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 2.950 |
| Bolt Hole Dia | 0.395, 4HOLES |
| CJ TO FLAT | 1.750 |
| Partn number | 3102-20 |
| Pilot dia | 1.968, M |
| SERIES | 1310 |
6 in stock (can be backordered)
