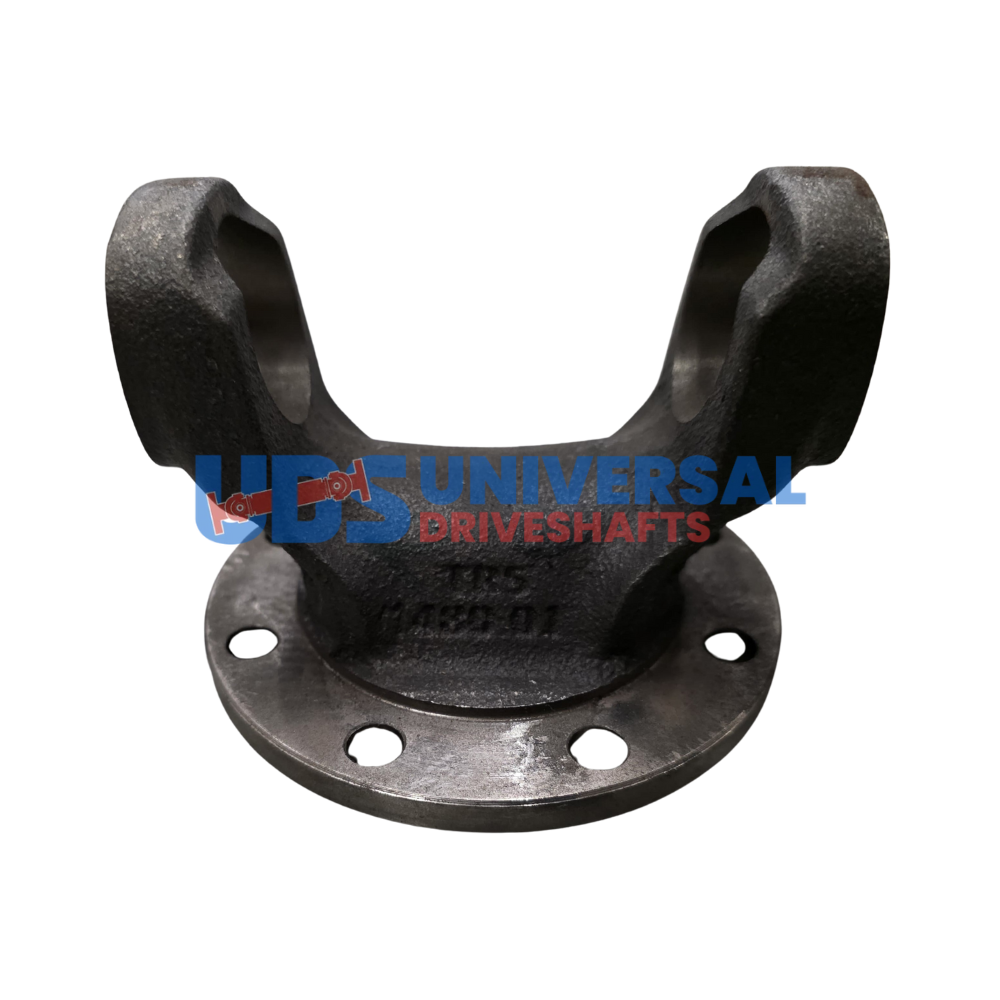

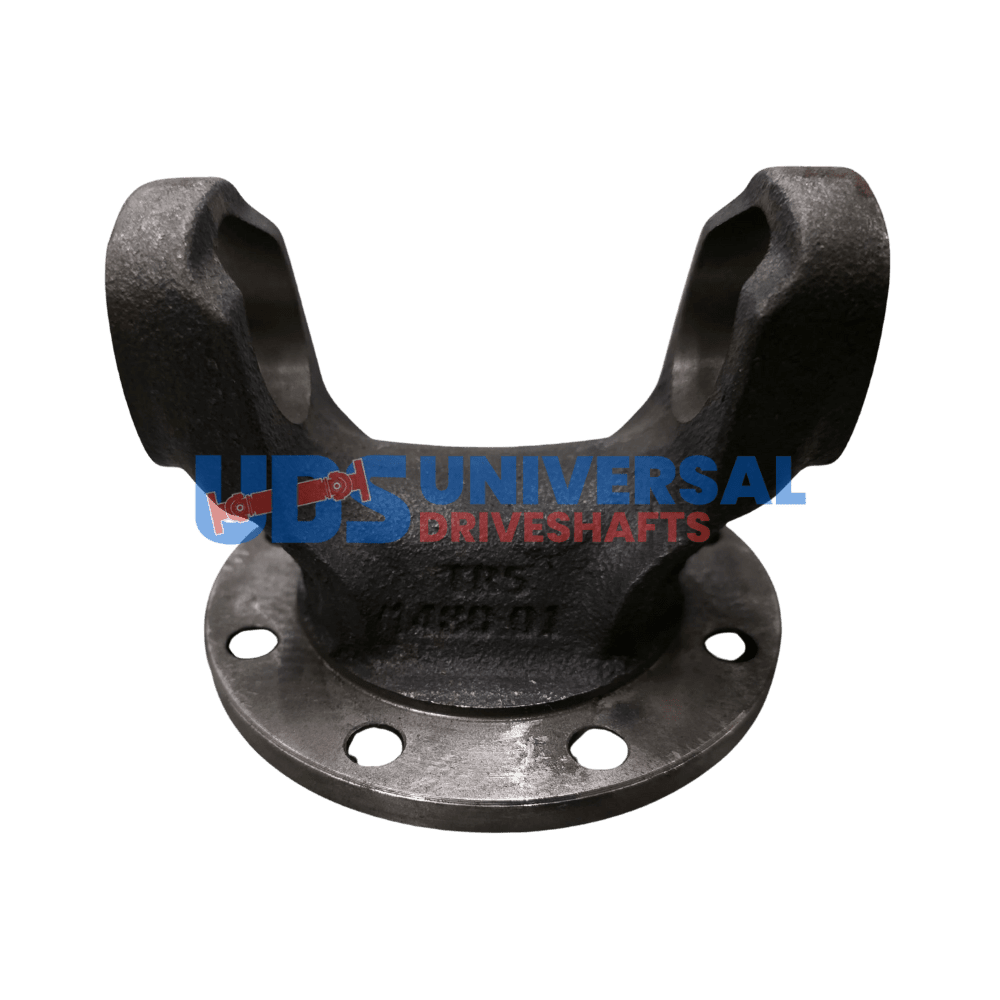

3-2-1159C | 1480 Series Circular Flange Yoke , Holes: 8 x 0.394 Bolt circle Diameter: 3.996 ,Pilot: 2.954F
$34.24
19 in stock
15 People watching this product now!
Description
3-2-1159C Flange Yoke — 1480 series, 3.996 bolt circle | 2.954 pilot | 8×0.394 bolt holes | 2.625″ CJ-to-flat. Premium bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
The 3-2-1159C flange yoke mounts to the companion flange or axle housing and carries the driveshaft end u-joint. It's not a universal part — the bolt circle, pilot diameter, and series are all specific. Vibration that tracks with vehicle speed and stays consistent under load often starts right here, at a worn or mis-seated flange yoke. The 3-2-1159C flange yoke is the correct replacement.
3-2-1159C Flange Yoke — 1480 Series Specifications & Fitment
The 1480 series covers heavy commercial Class 3-4 trucks and Dana heavy applications. The 3-2-1159C flange yoke specs: 3.996 bolt circle | 2.954 pilot | 8x0.394 bolt holes | 2.625" CJ-to-flat. 1410 - OD 120 - PILOT 75MM - 8 HOLES. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.
Before ordering the 3-2-1159C flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.
Key Features
- Series: 1480 — built for heavy commercial Class 3-4 trucks and Dana heavy applications
- Bolt circle: 3.996 — must match axle/diff flange hole pattern exactly
- Pilot dia: 2.954 — centers yoke on companion flange, no play allowed
- 8 bolt holes at 0.394 — verify hole count and size
- CJ-to-flat: 2.625" — affects driveshaft working angle clearance
- Brand: UDS — direct-fit replacement
- Note: 1410 - OD 120 - PILOT 75MM - 8 HOLES
Specifications
- SKU: 3-2-1159C
- Brand: UDS
- Series: 1480
- Bolt Circle: 3.996
- Pilot Dia: 2.954
- Bolt Holes: 8
- Bolt Hole Dia: 0.394
- CJ to Flat: 2.625"
- Notes: 1410 - OD 120 - PILOT 75MM - 8 HOLES
Additional information
| Bolt circle dia | 3.996 |
|---|---|
| Bolt hole dia | 0.394 |
| Cj to flat | 2.625 |
| Partn number | 3-2-1159C |
| Pilot dia | 2.954 |
| Series | 1480 |
| Bolt Holes | 8 |
| Notes | 1410 – OD 120 – PILOT 75MM – 8 HOLES |
