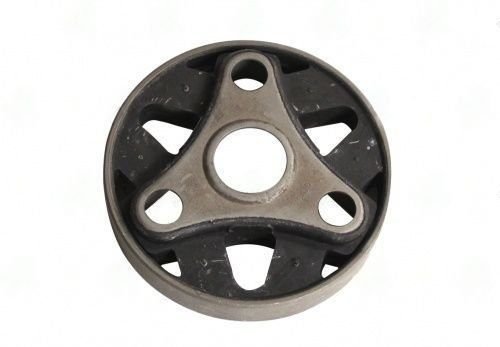

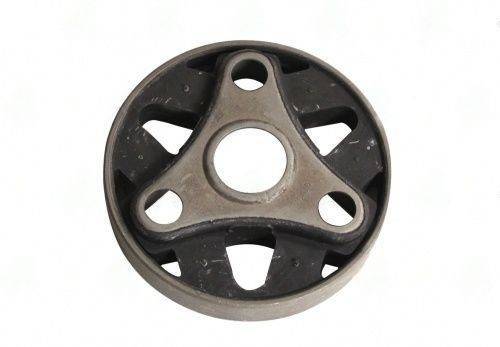

2812-315 – Rubber Flex Disc – Chrysler Application – Bolt Circle Dia 86MM – Disc Width 26.11″,
$212.98
0 in stock
20 People watching this product now!
Description
The 2812-315 Rubber Flex Disc is designed for Chrysler applications, featuring an 86MM bolt circle diameter and a disc width of 26.11″.
Full Description
When a customer rolls in with a clunking noise on takeoff or noticeable vibrations at low speeds, it often indicates a failing flex disc. The 2812-315 Rubber Flex Disc is the solution for Chrysler applications, effectively absorbing torsional vibrations between the transmission output and driveshaft input. This disc not only enhances ride comfort but also significantly reduces NVH (noise, vibration, harshness) in the cabin.
With a bolt circle diameter of 86MM, a disc width of 26.11", and three bolt holes with a diameter of 18.91MM, the 2812-315 is designed to fit seamlessly into your Chrysler setup. If you notice visible cracking or deformation on your current flex disc, it’s time for a replacement. This part is essential for maintaining the integrity of your driveline and ensuring a smooth driving experience.
- Application: Chrysler
- Bolt Circle Diameter: 86MM
- Disc Width: 26.11"
- Bolt Hole Count: 3
- Notes: Damper used with Tri-Prong. Note: Tri-Prong not included
For installation, make sure to check the bolt orientation and alignment arrows. Torque the bolts to specification in a star pattern to ensure even pressure. Regular inspections for cracks at the reinforcement sleeves can prevent unexpected failures and keep your vehicle running smoothly.
Additional information
| Application | CHRYSLER |
|---|---|
| Bolt circle dia | 86MM |
| Bolt hole count | 3 |
| Bolt hole dia | 18.91MM |
| Disc width | 26.11 |
| Notes | Damper used with Tri-Prong. Note: Tri-Prong not included |
| Partn number | 2812-315 |
| Pilot dia | N/A |
