2670-10

SKU: 2670-10

$8.96

21 in stock

20 People watching this product now!

Description

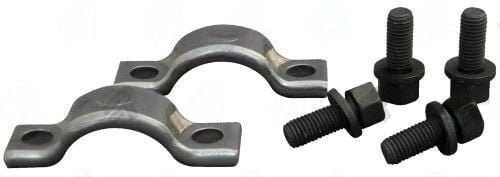

The 2670-10 Strap Kit is designed for the Dodge 7260 series. It fits a cap diameter of 1.078 inches and has a center-to-center (C to C) distance of 1.500 inches.

This kit includes bolts that are 0.625 inches long, with a thread diameter of .250-28. The recommended bolt torque for installation is 15 ft-lb.

Additional information

Bolt length	625
Bolt torque	15 ft-lb
Center to center	1.5
Fits cap dia	1.078
Partn number	2670-10
Thread dia	.250-28
Series	7260

More from the same Category

3-70-38X Universal Joint Strap Kit 1480 / 1550

$4.90

Bolt length	0.75
Bolt torque	52 ft-lb
Center to center	2.13
Fits cap dia	1.375
Partn number	3-70-38X
Thread dia	.375-24
Series	1480 , 1550

2-70-48X

$8.96

Bolt length	1.5
Bolt torque	32 ft-lb
Center to center	1.8
Fits cap dia	1.125
Partn number	2-70-48X
Thread dia	.312-24
Series	3R

image cmzWF2htl transformed

4870-20

$15.38

Bolt length	1.5
Bolt torque	25-30 ft-lb
Center to center	1.925
Fits cap dia	1.375
Partn number	4870-20
Thread dia	.312-24
Series	1485 , 1555

3570-20

$14.08

Bolt length	1.375
Bolt torque	25-30 ft-lb
Center to center	1.67
Fits cap dia	1.188
Partn number	3570-20
Thread dia	.312-24
Series	1350

3-70-48X

$33.31

Center to center	1.806
Fits cap dia	1.188
Partn number	3-70-48X
Thread dia	M8 X 1.0
Series	1350

1-2018

$16.65

Partn number	1-2018
Fits cap dia	1.125
Center to center	1.531
Thread size	.250-28
Series	7290

170-70-18X

$28.18

Bolt length	984
Bolt torque	115 ft-lb
Center to center	3.228
Fits cap dia	2.165
Partn number	170-70-18X
Thread dia	M12 X 1.25 6G
Series	SPL170

3-70-58X Long Bolt Fits GM applications typically Total Length with the head 1.8200

$7.69

Bolt length	1.5
Bolt torque	32 ft-lb
Center to center	1.66
Partn number	3-70-58X
Thread dia	.312-24
Notes	Bolt Total Length is:1.8200

350-70-18X UDS Universal Joint Strap Kit SPL350 65 X 172 68765 SER’

$30.89

Bolt length	1
Bolt torque	188 ft-lb
Center to center	3.938
Fits cap dia	2.559
Partn number	350-70-18X
Thread dia	M14x1.25-6g
Series	SPL350

1-2019

$12.66

Partn number	1-2019
Thread dia	.312-24
Series	1350 , 1410

90-70-28X Universal Joint Strap Kit SPL90 / SPL100

$13.96

Bolt length	0.75
Bolt torque	52 ft-lb
Center to center	2.312
Fits cap dia	1.625
Partn number	90-70-28X
Thread dia	.375-24
Series	SPL100 , SPL90

1-2020

$13.56

Bolt length	1.5
Bolt torque	32 ft-lb
Center to center	1.656
Fits cap dia	1.188
Partn number	1-2020
Thread dia	.312-24
Series	1350 , 1410

1-2021

$15.38

Bolt length	0.75
Bolt torque	52 ft-lb
Center to center	2.13
Fits cap dia	1.375
Partn number	1-2021
Thread dia	.375-24
Series	1480 , 1550

6.5-70-18X Universal Joint Strap Kit 1710 / 1760 / 1810

$16.65

Bolt length	1
Bolt torque	125 ft-lb
Center to center	2.806
Fits cap dia	1.938
Partn number	6.5-70-18X
Thread dia	.500-20
Series	1710 , 1760 , 1810
