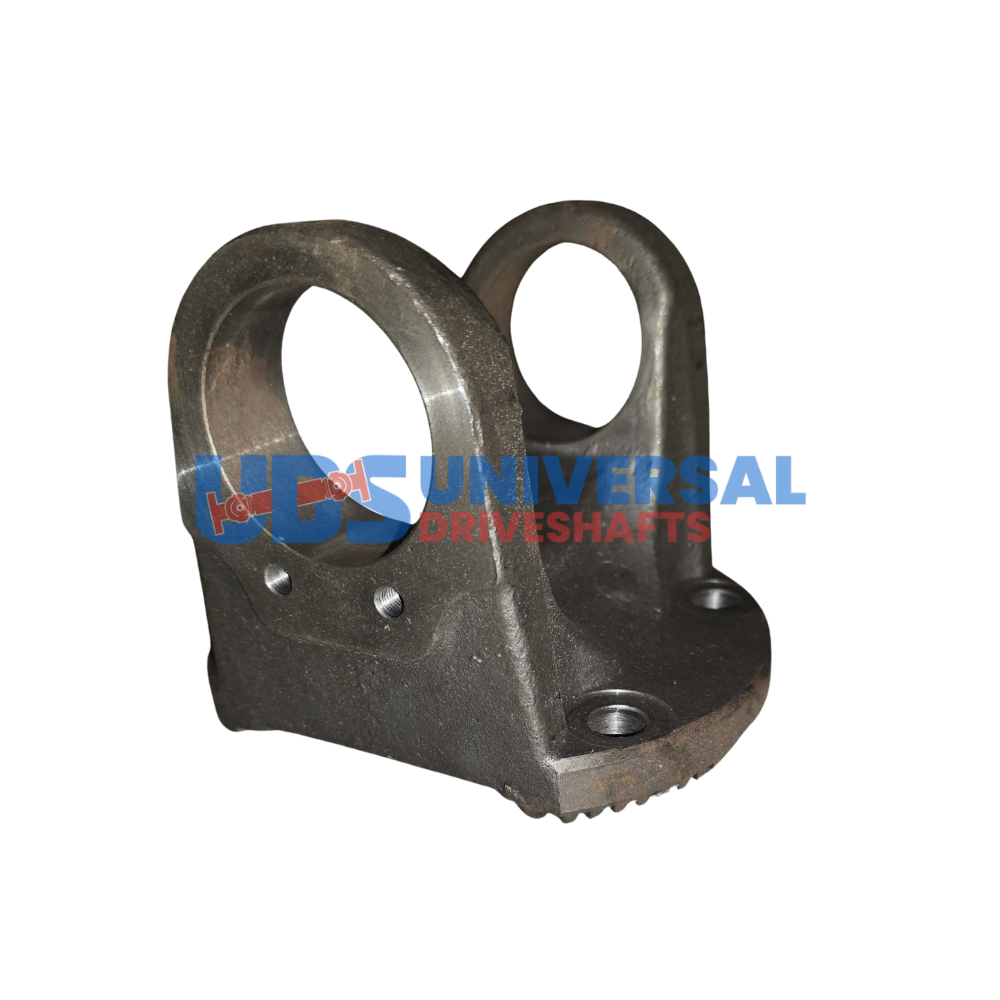

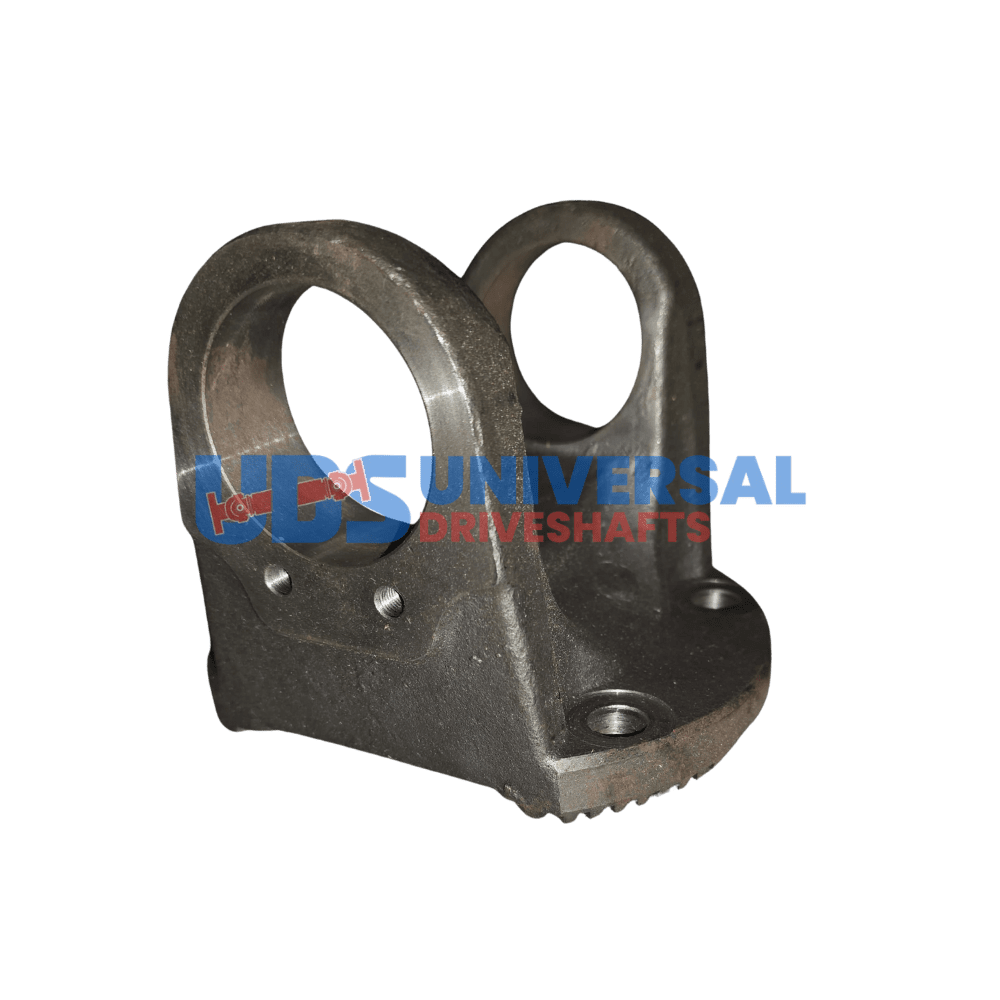

250-2-15 Flange Yoke SPL250 series, Serrated 180xs- Bolt Circle Diameter: 5.906 CL To End: 3.583″

When a SPL250 series flange yoke fails, the symptoms show up fast: driveline clunk under acceleration, vibration that doesn't go away with speed changes, or visible play at the diff flange. The 250-2-15 flange yoke is the spec-correct replacement — correct bolt circle, correct pilot, correct series. Dimension confirmation before ordering is still the right call.

250-2-15 Flange Yoke — SPL250 Series Specifications & Fitment

The 250-2-15 flange yoke specs: 5.906 bolt circle | XS 180 pilot | 4x0.551 bolt holes | 3.583" CJ-to-flat. SPL250 XS180 Serrated. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.

Before ordering the 250-2-15 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.

Key Features

• Series: SPL250 — built for this drivetrain application
• Bolt circle: 5.906 — must match axle/diff flange hole pattern exactly
• Pilot dia: XS 180 — centers yoke on companion flange, no play allowed
• 4 bolt holes at 0.551 — verify hole count and size
• CJ-to-flat: 3.583" — affects driveshaft working angle clearance
• Brand: UDS — direct-fit replacement
• Note: SPL250 XS180 Serrated

Specifications

• SKU: 250-2-15
• Brand: UDS
• Series: SPL250
• Bolt Circle: 5.906
• Pilot Dia: XS 180
• Bolt Holes: 4
• Bolt Hole Dia: 0.551
• CJ to Flat: 3.583"
• Notes: SPL250 XS180 Serrated
