2182-27 – Yoke Shafts – 1210 Series – 1.162″ Splines Dia – 27 Spline
$72.17
0 in stock
13
People watching this product now!
Description

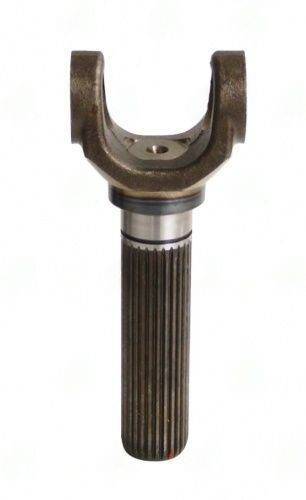

2182-27 Yoke Shaft — 1210 series, 1.162″ x 27 spline | 4.019″ spline length | 6.432″ CL-to-end. Premium integrated shaft-and-yoke assembly.
Full Description
The 2182-27 yoke shaft is an integrated assembly — splined shaft on one end, u-joint yoke on the other. It splines onto the output shaft and carries the u-joint cross simultaneously, in one part. For 1210 series applications, both the spline specification and the u-joint series have to be correct. One wrong dimension on either end and the part doesn't work.
2182-27 Yoke Shaft — 1210 Series Spline & CL Specs
The 1210 series covers older foreign compacts and small import trucks. The 2182-27 yoke shaft specs: 1.162" x 27 spline | 4.019" spline length | 6.432" CL-to-end. BMW Yoke shaft. Spline length determines engagement depth — short engagement under high torque loads damages the output shaft, not just the yoke shaft. CL-to-end positions the u-joint cross relative to the output shaft face; this affects clearance on tight installations.
Verify both ends of the 2182-27 yoke shaft before installing: spline count against the output shaft, and series cross size against the driveshaft u-joint. If either is wrong, the part has to come back out. Measure once, order correctly.
Key Features
- Series: 1210 — older foreign compacts and small import trucks
- Spline: 1.162" x 27 — must match output shaft exactly
- Spline length: 4.019" — full engagement required
- CL-to-end: 6.432" — u-joint position from output shaft face
- Integrated design — splined shaft and u-joint yoke in one piece
- Brand: UDS
- Note: BMW Yoke shaft
Specifications
- SKU: 2182-27
- Brand: UDS
- Series: 1210
- Spline Dia: 1.162"
- Spline Count: 27
- Spline Length: 4.019"
- CL to End: 6.432"
- Notes: BMW Yoke shaft
Additional information
| Boot cap part |
N/A |
|---|---|
| C l to end |
6.432 |
| Notes |
BMW Yoke shaft |
| Partn number |
2182-27 |
| Series |
1210 |
| Splines count |
27 |
| Splines dia |
1.162 |
| Splines length |
4.019 |
