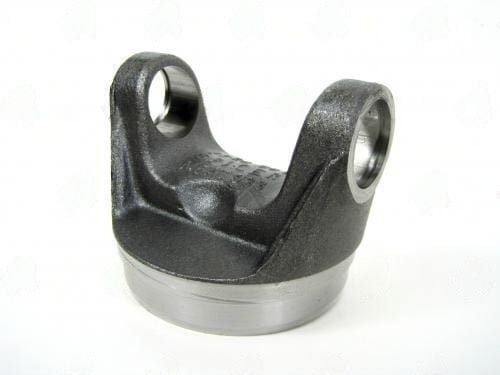

2-28-1977 Tube Yoke 1330 Ser’ , Fits: 3.500 X 0.065 , Butt Dia: 3.381 , CL To Weld: 1.812 Inch

2-28-1977 is a crucial component in the world of driveline engineering. This weld yoke, part of the 1330 Series, is specifically designed to connect driveshafts to various driveline components, ensuring reliable performance in low-duty applications. The 3.125″ butt diameter allows for a secure fit with compatible tubing, while the 1.812″ center U-joint to weld distance provides the necessary clearance for effective operation.

The choice of steel as the material for this yoke ensures durability and strength, essential for handling the torque loads typically seen in light-duty applications. The 1330 Series was engineered to balance weight and strength, making it ideal for setups where excess weight is a concern but strength cannot be compromised. This yoke is particularly suited for applications where the joint angle remains at 0 degrees, allowing for straight connections without the need for additional articulation.

• Butt Diameter: 3.125″ for secure tubing connections
• Center U-Joint to Weld Distance: 1.812″ for optimal clearance
• Material: Steel for enhanced durability
• Fits 1330 Series specifications for compatibility
• Ideal for low-duty applications with minimal joint angle

When installing the 2-28-1977, ensure proper spline engagement and verify alignment with the opposite yoke to maintain driveline phasing. This attention to detail will help prevent premature wear and failure, extending the life of your driveline components. Remember, the 2-28-1977 is not just a part; it’s a vital link in your vehicle’s performance.
