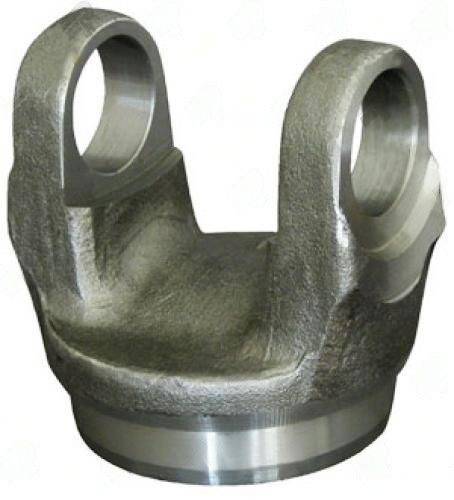

1526-25 Weld Tube Yoke 1551-20 Series, Fits: 2.500×0.065, Butt Dia: 2.375 , Centerline To Weld: 1.750

When working with the 1526-25 weld yoke, it’s essential to understand its specifications and installation requirements. This yoke is specifically designed for MAZDA applications and features a butt diameter of 2.375 inches, a tube diameter wall of 2.500X0.065 inches, and a centerline to weld distance of 1.750 inches. Constructed from durable steel, it provides the strength needed for effective torque transfer in your driveline setup.

Before installation, double-check the compatibility of this yoke with your existing components. Ensure that the spline engagement depth is correct and that the yoke is phased properly with the opposite yoke. A common mistake is forcing the spline entry, which can lead to damage. Instead, align the splines carefully and slide the yoke into place without excessive force.

• Verify the butt diameter of 2.375 inches for proper fit.
• Check the tube diameter wall of 2.500X0.065 inches against your tubing.
• Ensure the center U-joint to weld distance of 1.750 inches matches your setup.
• Inspect the yoke for any signs of wear or damage before installation.
• Use appropriate torque specifications for fastening to avoid loosening during operation.

By following these guidelines, you can ensure a successful installation of the 1526-25 weld yoke, optimizing the performance of your driveline system.
