140-70-18X

SKU: 140-70-18X

$26.90

14 in stock

15 People watching this product now!

Description

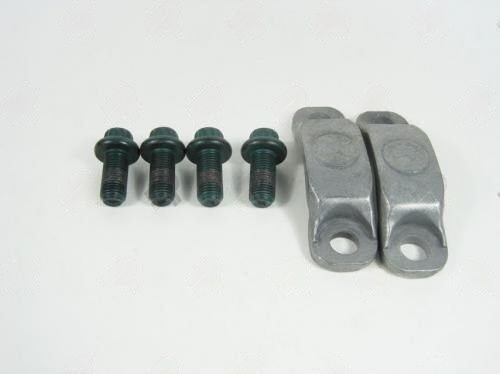

The 140-70-18X strap kit is designed for the SPL140 series. It fits a cap diameter of 2.362 inches and features a center-to-center distance of 3.000 inches. The bolt length measures 0.984 inches, with a thread diameter of M12 X 1.25 6G, requiring a bolt torque of 115 ft-lb. The strap number for this kit is 140-70-19, and the associated bolt number is 5007417. This product is produced by Spicer.

Additional information

Bolt length	984
Bolt torque	115 ft-lb
Center to center	3
Fits cap dia	2.362
Partn number	140-70-18X
Thread dia	M12 X 1.25 6G
Series	SPL140

More from the same Category

1-2024

$12.17

Center to center	1.593
Fits cap dia	1.062
Partn number	1-2024
Thread dia	.312-24
Series	1310 , 1330

1-1945

$15.38

Bolt length	0.75
Bolt torque	52 ft-lb
Center to center	2.5
Fits cap dia	1.875
Partn number	1-1945
Thread dia	.375-24
Series	1610

3-70-38X Universal Joint Strap Kit 1480 / 1550

$4.90

Bolt length	0.75
Bolt torque	52 ft-lb
Center to center	2.13
Fits cap dia	1.375
Partn number	3-70-38X
Thread dia	.375-24
Series	1480 , 1550

3570-20

$14.08

Bolt length	1.375
Bolt torque	25-30 ft-lb
Center to center	1.67
Fits cap dia	1.188
Partn number	3570-20
Thread dia	.312-24
Series	1350

90-70-28X Universal Joint Strap Kit SPL90 / SPL100

$13.96

Bolt length	0.75
Bolt torque	52 ft-lb
Center to center	2.312
Fits cap dia	1.625
Partn number	90-70-28X
Thread dia	.375-24
Series	SPL100 , SPL90

image cmzWF2htl transformed

4870-20

$15.38

Bolt length	1.5
Bolt torque	25-30 ft-lb
Center to center	1.925
Fits cap dia	1.375
Partn number	4870-20
Thread dia	.312-24
Series	1485 , 1555

250-70-18X

$26.90

Bolt length	984
Bolt torque	115 ft-lb
Center to center	3.444
Fits cap dia	2.362
Partn number	250-70-18X
Thread dia	M12 X 1.25 6G
Series	SPL250

N90-70-28X

$19.21

Bolt length	0.75
Bolt torque	52 ft-lb
Center to center	2.312
Fits cap dia	1.625
Partn number	N90-70-28X
Thread dia	.375-24
Series	SPL100 , SPL90

1-2019

$12.66

Partn number	1-2019
Thread dia	.312-24
Series	1350 , 1410

1-2018

$16.65

Partn number	1-2018
Fits cap dia	1.125
Center to center	1.531
Thread size	.250-28
Series	7290

170-70-18X

$28.18

Bolt length	984
Bolt torque	115 ft-lb
Center to center	3.228
Fits cap dia	2.165
Partn number	170-70-18X
Thread dia	M12 X 1.25 6G
Series	SPL170

1-2020

$13.56

Bolt length	1.5
Bolt torque	32 ft-lb
Center to center	1.656
Fits cap dia	1.188
Partn number	1-2020
Thread dia	.312-24
Series	1350 , 1410

5-70-28X

$12.82

Bolt length	0.75
Bolt torque	52 ft-lb
Center to center	2.5
Fits cap dia	1.875
Partn number	5-70-28X
Thread dia	.375-24
Series	1610

2-70-18X Universal Joint Strap Kit 1210 / 1310 / 1330

$6.51

Bolt length	625
Bolt torque	15 ft-lb
Center to center	1.587
Fits cap dia	1.062
Partn number	2-70-18X
Thread dia	.250-28
Series	1210 , 1310 , 1330
