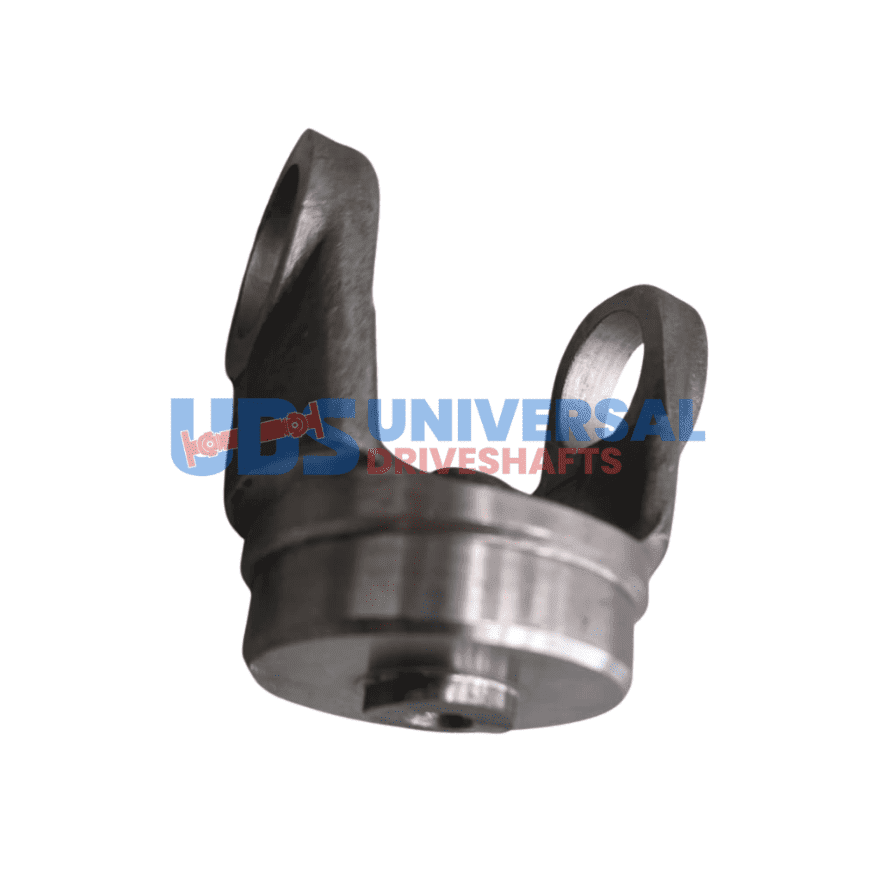

1326-20-S Weld Tube Yoke 1510 | 1351-20 Ser’ – Fits: 2.560 SOLID BUTT Tube Butt Dia: 2.345 Inch Toyota
$40.07
27 in stock
Description
The 1326-20-S weld yoke is engineered to meet the demands of Toyota applications, specifically designed with a 1351-20 series configuration. This yoke features a robust butt diameter of 2.345 inches, ensuring a strong connection that can handle significant torque loads. The tube diameter wall measures 2.560 inches with a wall thickness of 0.065 inches, providing a balance of weight and strength crucial for performance and durability.
One of the key aspects of the 1326-20-S is its center U-joint to weld measurement of 2.000 inches. This dimension is critical for proper alignment and phasing with the opposite yoke, ensuring smooth operation and reducing the risk of vibrations that can lead to premature wear. The solid butt design allows for turning down to 2.000 x 0.125 inches, offering versatility in various fabrication scenarios.
- Butt Diameter: 2.345 inches
- Tube Diameter Wall: 2.560 x 0.065 inches
- Center U-Joint to Weld: 2.000 inches
- Material: Steel
- Application: Solid butt, can be turned down for specific needs
When installing the 1326-20-S, ensure proper spline engagement and verify phasing with the opposite yoke to maintain driveline integrity. This yoke is built to last, making it an essential component for any serious fabrication shop or fleet technician.
| Butt dia |
2.345 |
|---|---|
| Center u j to weld |
2.000" |
| Material |
STEEL |
| Notes |
SOLID BUTT – CAN BE TURN DOWN TO 2.000 X 0.125 ,TOYOTA |
| Partn number |
1326-20 |
| Remaining stock |
<10 |
| Series |
1351-20 |
| Tube dia wall |
2.560×0.065 |
| Brand |
UDS |
