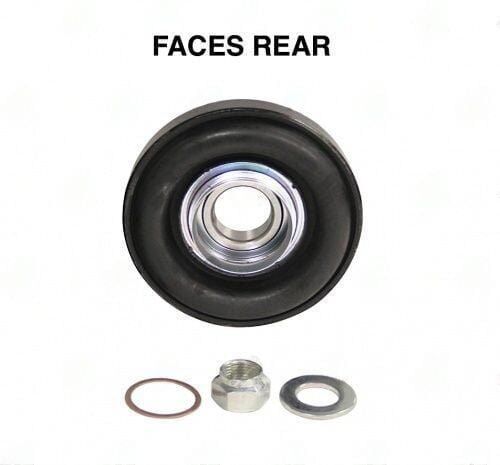

1280-20 – Center Support Bearing – Nissan – 1.181 – 2.375 – 9.375
$76.59
Out of stock
16
People watching this product now!
Description
Center support bearing 1280-20. 1.181″ inner dia | 2.375″ center-to-base | 9.375″ mount hole spacing. Pickup 4X4 (79-88). Inner dia and bracket spacing must match.
Full Description
Center bearing replacement on a two-piece shaft means getting the inner diameter right and matching the mount hole spacing exactly. The 1280-20 covers both.
1280-20 Center Support Bearing -- Nissan Series Dimensions
Specs on the 1280-20 center support bearing: 1.181" inner dia | 2.375" center-to-base | 9.375" mount hole spacing. Pickup 4X4 (79-88). Built for Nissan series applications. The inner diameter must match your midshaft stub -- too loose and the bearing walks; too tight and it won't press on.
Mount hole center-to-center spacing is the most overlooked spec on CSBs. If the holes don't match your crossmember bracket, the bearing will be offset and the shaft will run off-center.
Key Features
- Application: Nissan series -- verify your driveshaft series matches
- Bearing inner dia: 1.181" -- must match midshaft stub OD exactly
- Center-to-base: 2.375" -- height from shaft centerline to mounting surface
- Mount hole spacing: 9.375" -- must match crossmember bracket hole pattern
- Rubber isolator included -- absorbs vibration, reduces NVH at the midshaft
- Complete assembly -- bearing race, rubber mount, and bracket in one unit
- Note: Pickup 4X4 (79-88)
Specifications
- SKU: 1280-20
- Brand: UDS
- Application: Nissan Series
- Bearing ID: 1.181"
- Center to Base: 2.375"
- Mount Hole Spacing: 9.375"
- Notes: Pickup 4X4 (79-88)
Additional information
| Application |
Nissan |
|---|---|
| Bearing id |
1.181 |
| Center bearing to base |
2.375 |
| Ctr to ctr of mount holes |
9.375 |
| Notes |
Pickup 4X4 (79-88) |
| Partn number |
1280-20 |
