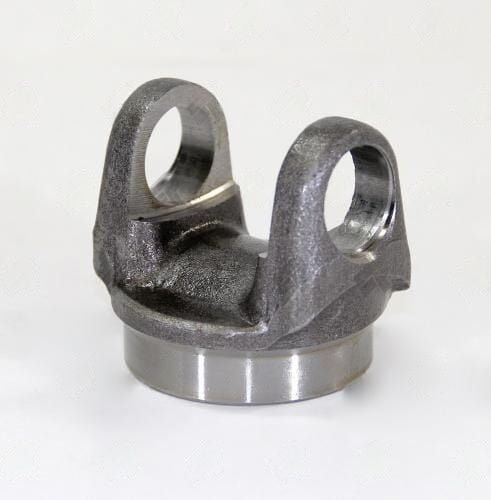

The 1226-251 Weld Yoke is a robust steel component from the 1251-22 Series, specifically designed for FOREIGN – HONDA applications. This yoke features a butt diameter of 2.375 inches, which is crucial for ensuring a proper fit with compatible driveshafts. The tube diameter wall measures 2.500 inches with a thickness of 0.065 inches, providing the necessary strength while keeping weight in check.
One of the standout features of the 1226-251 is its center U-joint to weld distance of 1.375 inches. This dimension is critical for maintaining the correct alignment and phasing with the opposite yoke, which is essential for smooth operation and longevity of the driveline. If you mistakenly use a yoke with a different center distance, you risk misalignment, leading to premature wear or failure.
When installing the 1226-251, ensure that you check the spline engagement depth and avoid forcing the spline entry. Proper installation will help prevent issues down the line. Here are some key points to remember:
- Verify the butt diameter of 2.375 inches for compatibility.
- Ensure the tube wall thickness of 0.065 inches meets your application needs.
- Check the center U-joint to weld distance of 1.375 inches for correct alignment.
In summary, the 1226-251 Weld Yoke is engineered to deliver reliable performance in FOREIGN – HONDA applications, making it a vital component for any driveline assembly.
