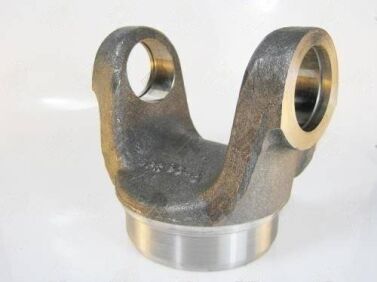

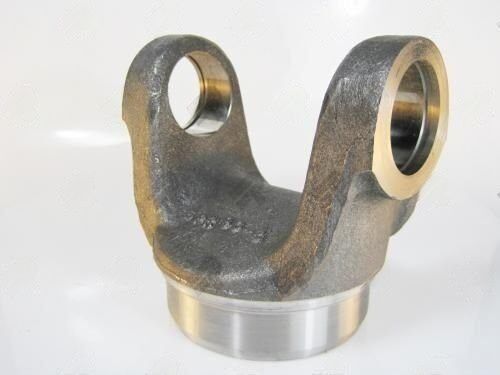

100-28-17 – Weld Yokes – SPL90/100 Series – Butt Dia 3.810″ – Tube Dia Wall 4.000X0.095
$74.50
Description
100-28-17 is a precision-engineered Weld Yoke from the SPL90/100 Series, designed to handle the demands of modern driveline applications. With a butt diameter of 3.810 inches and a centerline to weld distance of 2.969 inches, this yoke provides a reliable connection between the driveshaft and the transmission or differential. The robust steel construction ensures durability under high torque loads, making it a critical component for performance and heavy-duty applications.
This yoke is specifically designed to fit a tube diameter of 4.000 inches with a wall thickness of 0.095 inches, allowing for a secure weld that can withstand the stresses of operation. The SPL90/100 Series was developed to bridge the gap between lighter-duty yokes and those that can handle extreme torque, making it an ideal choice for applications that require both strength and weight efficiency.
- Butt Diameter: 3.810 inches
- Center U J to Weld: 2.969 inches
- Material: Steel
- Tube Diameter Wall: 4.000X0.095
- Brand: Spicer
When installing the 100-28-17, ensure proper spline engagement and alignment with the opposite yoke to avoid premature wear or failure. This yoke is a reliable choice for those looking to enhance their driveline’s performance and longevity.
| Butt dia | 3.810" |
|---|---|
| Center u j to weld | 2.969 |
| Material | STEEL |
| Partn number | 100-28-17 |
| Remaining stock | <10 |
| Series | SPL90/100 |
| Tube dia wall | 4.000X0.095 |
| Brand | SPICER |
