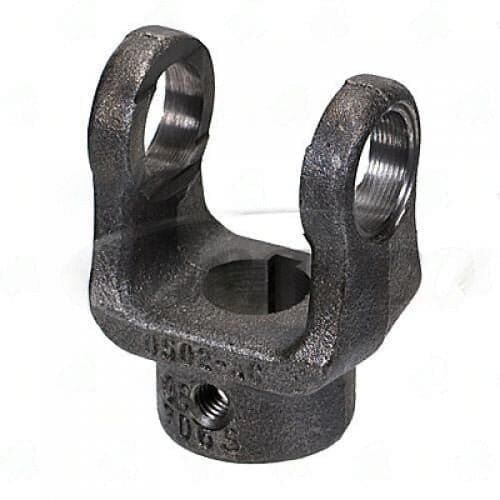

10-0463 – End Yoke – 1000 Series – 1.62″ Hub Dia – Bore Dia 875

The 10-0463 PTO end yoke connects a power take-off shaft to the u-joint -- agricultural, industrial, or specialty application. Bore size and keyway have to match the PTO shaft exactly.

10-0463 PTO End Yoke -- 1000 Series Bore & Keyway

The 1000 series is the standard for PTO applications -- agricultural equipment, industrial shafts, tractor drive. The 10-0463 PTO end yoke specs: 1.24 bore | GAP - 0.25" keyway | 1.62" hub dia | 2.50" CJ-to-end. Bore type: round -- verify against your PTO shaft.

Keyway width is the critical dimension -- a loose keyway destroys the shaft. Match the keyway to your shaft width exactly.

Key Features

• Series: 1000 -- PTO applications -- agricultural equipment, industrial shafts, tractor drive
• Bore: 1.24 -- must match PTO shaft OD exactly
• Keyway: GAP - 0.25" -- match to PTO shaft keyway width
• Hub dia: 1.62" -- outer dimension
• CJ-to-end: 2.50" -- determines u-joint position on PTO shaft
• Bore type: Round -- standard PTO shaft configuration

Specifications

• SKU: 10-0463
• Brand: UDS
• Series: 1000
• Bore Type: Round
• Through Hole: 1.24
• Bore Dia: 875
• Keyway: GAP - 0.25"
• Hub Dia: 1.62"
• CJ to End: 2.50"
