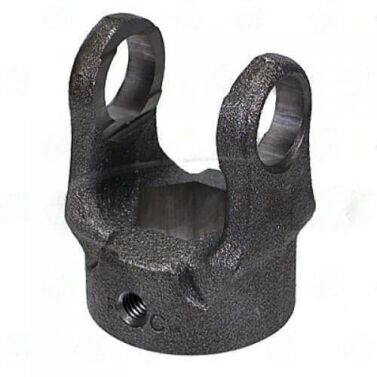

10-0432 – End Yoke – 1000 Series – 1.125″ Bore Dia – 2.25″ Hub Dia

PTO shafts run at specific RPMs and carry significant torque. The 10-0432 PTO end yoke is the correct connection point -- round bore, keyed, and dimensioned for this application.

10-0432 PTO End Yoke -- 1000 Series Bore & Keyway

The 1000 series is the standard for PTO applications -- agricultural equipment, industrial shafts, tractor drive. The 10-0432 PTO end yoke specs: 1.225 bore | 0" keyway | 2.25" hub dia | 2.500" CJ-to-end. Bore type: haxagon -- verify against your PTO shaft.

Keyway width is the critical dimension -- a loose keyway destroys the shaft. Match the keyway to your shaft width exactly.

Key Features

• Series: 1000 -- PTO applications -- agricultural equipment, industrial shafts, tractor drive
• Bore: 1.225 -- must match PTO shaft OD exactly
• Keyway: 0" -- match to PTO shaft keyway width
• Hub dia: 2.25" -- outer dimension
• CJ-to-end: 2.500" -- determines u-joint position on PTO shaft
• Bore type: Haxagon -- standard PTO shaft configuration

Specifications

• SKU: 10-0432
• Brand: UDS
• Series: 1000
• Bore Type: Haxagon
• Through Hole: 1.225
• Bore Dia: 1.125
• Keyway: 0"
• Hub Dia: 2.25"
• CJ to End: 2.500"
