10-0431 – End Yoke – 1000 Series – 2.00″ Hub Dia – Bore Dia 1.375-6

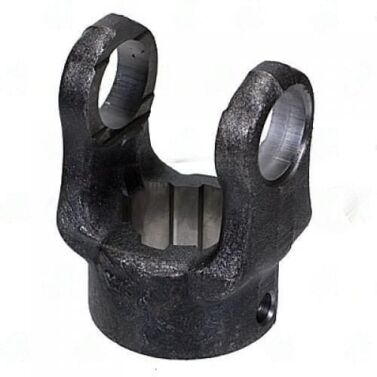

The 10-0431 is a 1000 series PTO end yoke. It slides onto a keyed PTO shaft and carries the u-joint cross at the opposite end.

10-0431 PTO End Yoke Specifications

10-0431 PTO end yoke -- 02.03 bore | 0" keyway | 2.00" hub dia | 2.500" CJ-to-end.

The 1000 series is the standard for PTO applications -- agricultural equipment, industrial shafts, tractor drive. Hub diameter and CJ-to-end length determine clearance in the application. Both matter on tight equipment installations.

Key Features

• Series: 1000 -- PTO applications -- agricultural equipment, industrial shafts, tractor drive
• Bore: 02.03 -- must match PTO shaft OD exactly
• Keyway: 0" -- match to PTO shaft keyway width
• Hub dia: 2.00" -- outer dimension
• CJ-to-end: 2.500" -- determines u-joint position on PTO shaft
• Bore type: Splined -- standard PTO shaft configuration

Specifications

• SKU: 10-0431
• Brand: UDS
• Series: 1000
• Bore Type: Splined
• Through Hole: 02.03
• Bore Dia: 1.375-6
• Keyway: 0"
• Hub Dia: 2.00"
• CJ to End: 2.500"
