10-0412 – End Yoke – 1000 Series – 1.62″ Hub Dia – 2.500″ Cj To End”,

PTO yoke failure often looks like a keyway issue -- the key shears or the bore wallows out. The 10-0412 is the clean replacement before shaft damage occurs.

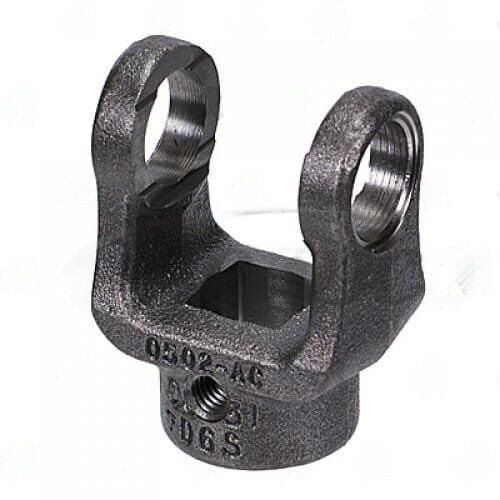

10-0412 PTO End Yoke -- 1000 Series Bore & Keyway

The 1000 series is the standard for PTO applications -- agricultural equipment, industrial shafts, tractor drive. The 10-0412 PTO end yoke specs: 1.225 bore | 1.62" hub dia | 2.500" CJ-to-end. Bore type: square -- verify against your PTO shaft.

Keyway width is the critical dimension -- a loose keyway destroys the shaft. Match the keyway to your shaft width exactly.

Key Features

• Series: 1000 -- PTO applications -- agricultural equipment, industrial shafts, tractor drive
• Bore: 1.225 -- must match PTO shaft OD exactly
• Hub dia: 1.62" -- outer dimension
• CJ-to-end: 2.500" -- determines u-joint position on PTO shaft
• Bore type: Square -- standard PTO shaft configuration

Specifications

• SKU: 10-0412
• Brand: UDS
• Series: 1000
• Bore Type: Square
• Through Hole: 1.225
• Hub Dia: 1.62"
• CJ to End: 2.500"
