One Piece Driveshaft Measuring Guide
Use This Guide To Measure Driveshaft Length For Most: Cars, Vans, 2wd Trucks, And Some 4wd Front And Rear Shafts.
Measurement Instructions: It is essential to measure the driveshaft length while the vehicle’s axle is in its normal riding position. Ensure the axle is properly supported on safety stands and not suspended.
This procedure is critical for obtaining accurate measurements.
TRANSMISSION OUTPUT TYPE - SEAL
Measurement (A) – DRIVESHAFT LENGTH:
Measure from end of rubber seal on the transmission to the flat face of the end yoke or flange on the differential.
Measurement (B) – SPLINE EXTRUSION LENGTH:
Measure from end of rubber seal to end the of the transmission output. If spline is recessed in rubber seal, measurement can be noted as ø
TRANSMISSION OUTPUT TYPE -RUBBER BOOT EXTENSION
Measurement (A) – DRIVESHAFT LENGTH:
Measure from end of rubber boot extension on the transmission to the flat face of the end yoke or flange on the differential.
Measurement (B) – SPLINE EXTRUSION LENGTH:
Measure from end of rubber boot extension on the end of transmission output. If spline is recessed in rubber boot extension, enter ø.
Let Us Help You Find the Right Part
Fill out the form below and we will contact you with the right fit part number.
Use This Guide To Measure Driveshaft Length For Most: 4wd Front Shafts And Some 4wd Rear Shafts
Measurement Instructions: It is essential to measure the driveshaft length while the vehicle’s axle is in its normal riding position. Ensure the axle is properly supported on safety stands and not suspended.
This procedure is critical for obtaining accurate measurements.

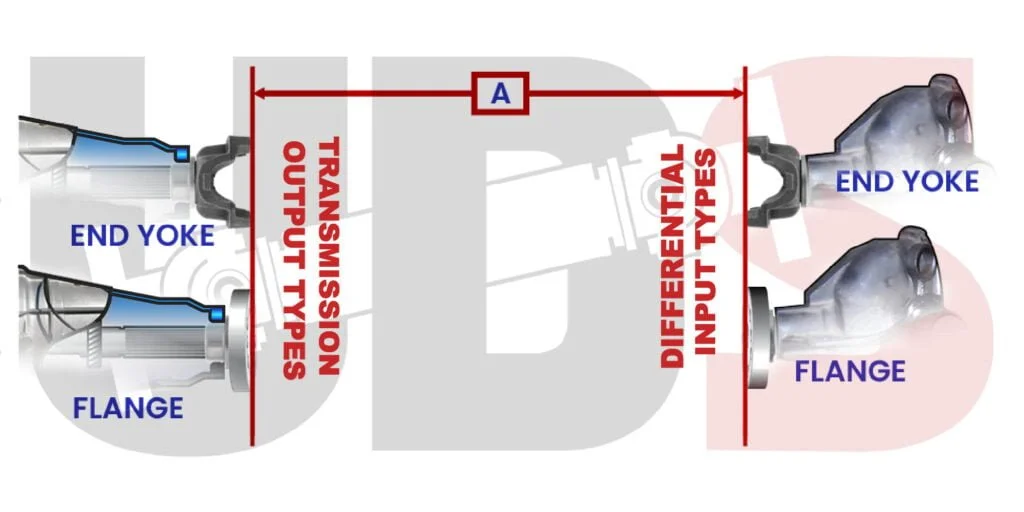

TRANSMISSION OUTPUT TYPE - END YOKE
Measurement (A) – DRIVESHAFT LENGTH:
Measure from center of u-joint/flats on the end yoke on the transmission output to the face of the end yoke or the face of the flange on the differential input end.
TRANSMISSION OUTPUT TYPE - FLANGE
Measurement (A) – DRIVESHAFT LENGTH:
Measure from the flat of the flange on the transmission output to the center of the u-joint on the end yoke or the face of the flange on the differential input end.
Let Us Help You Find the Right Part
Fill out the form below and we will contact you with the right fit part number.
