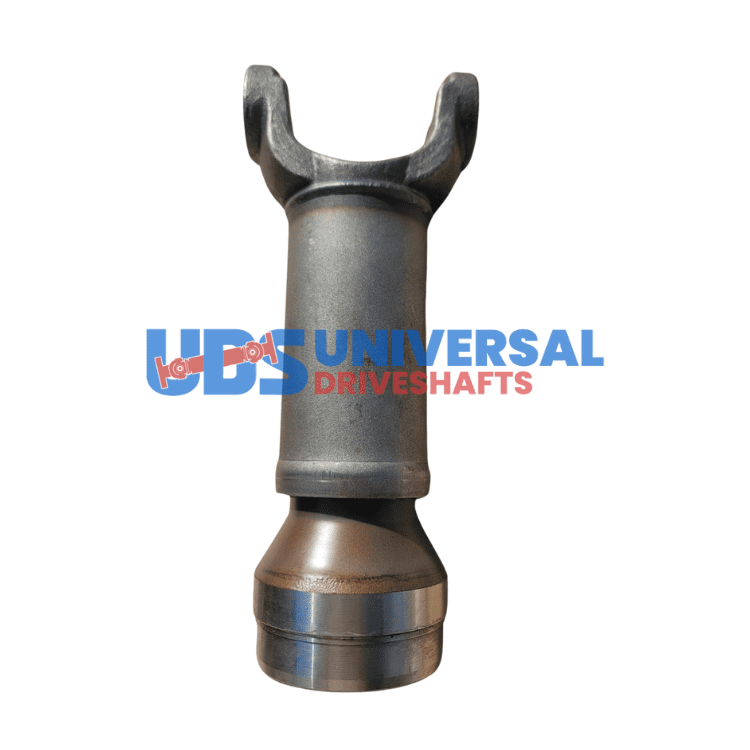

SA1480-3595 Splined Sleeve – Fits 3.500 x 0.095 1480 Series Slip Assembly 1480 / 68730 Series Reverse Slip Joint 9.7″ – REVERSIBLE ASSEMBLY UDS
$161.30
20 in stock
17 People watching this product now!
Description
The SA1480-3595 splined sleeve fits 3.500 x 0.095 tubes and features 30 splines with a 3.317″ butt diameter.
Full Description
SA1480-3595 is a robust splined sleeve designed to meet the demands of high-performance driveline applications. This component features a 1.875" spline diameter and is part of the 1480 Series, known for its reliability in heavy-duty setups. With 30 splines, this sleeve provides a secure fit and excellent torque transfer, making it ideal for various automotive applications.
The butt diameter of 3.317" ensures compatibility with standard tubing sizes, specifically designed to fit 3.500 x 0.095 tubes. This configuration allows for a seamless integration into your driveline system, ensuring that power is efficiently transmitted without slippage or misalignment. The critical length from the centerline to weld is 9.750", which is essential for maintaining the correct alignment and balance within the assembly.
- Material: Steel for enhanced durability
- 30 splines for improved torque handling
- Designed for 1480 Series applications
- Fits to tube size: 3.500 x 0.095
- CL to Weld measurement: 9.750" for precise installation
When installing the SA1480-3595, ensure that the mating components are clean and free of debris to prevent premature wear. Regular inspection of the splines for wear and damage can help maintain optimal performance. This splined sleeve is a critical component for ensuring the longevity and efficiency of your driveline system.
Additional information
| Brand | UDS |
|---|---|
| Series | 1480 |
| Splines count | 30 |
| Fits to tube | 3.500×0.095 |
| Butt dia | 3.317 |
| Splines dia | 1.875 |
| Notes | CL to Weld: 9.750" |
| Material | STEEL |
| Partn number | SA1480-3595 |
