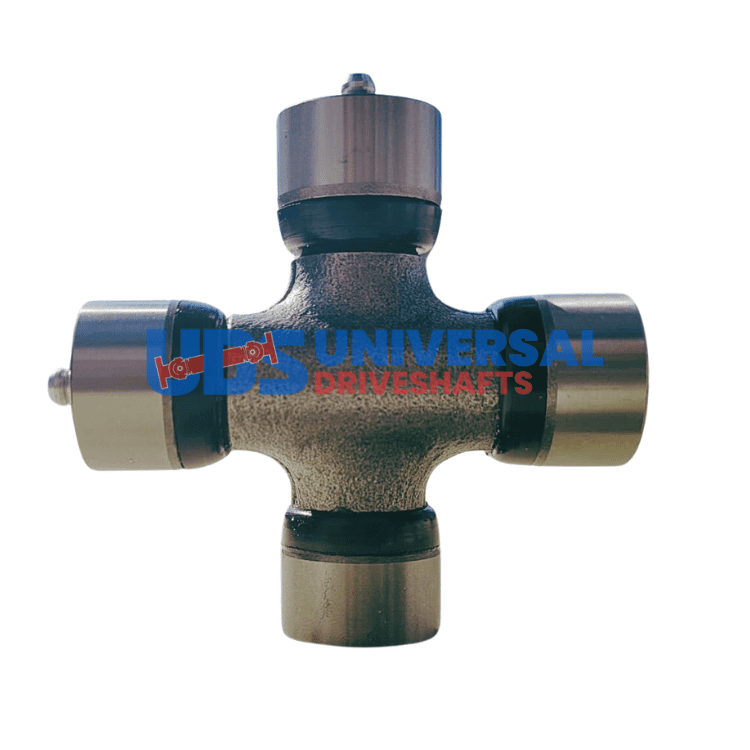

1350 Offset Universal Joint Super flex High Angle
$17.70
+50 in stock
Description
The innovative design of offset trunnions in this universal joint increases the distance between mating yokes compared to conventional joints, resulting in a 10-degree increase in flexibility. While this increment may appear minimal, it translates to over 5 inches of additional axle droop before joint binding occurs when using a 30-inch drive shaft. Our rigorous testing has confirmed that installation of this universal joint into standard yokes enables the drive shaft to achieve a 40-degree flex. Furthermore, with minor yoke modifications, the drive shaft can attain a 45-degree flex angle, demonstrating significant improvements in overall performance and versatility.
Built for the demands of off-road dominance, Super Flex boasts:
10° more angle capability: Conquer extreme inclines with ease.
Offset trunnion design: Maximizes articulation for superior clearance.
IMPORTANT: This joint will cause drive shaft vibrations. It is not compatible with double cardan (CV) assemblies. It should not be used at high speeds.
| Series | 1350 Offset |
|---|---|
| Style | OSR |
| Cap dia 1 | 1.188 |
| Width 1 | 3.625 |
| Brand | UDS |
| Lube | Y |
| Partn number | 1350TST |
