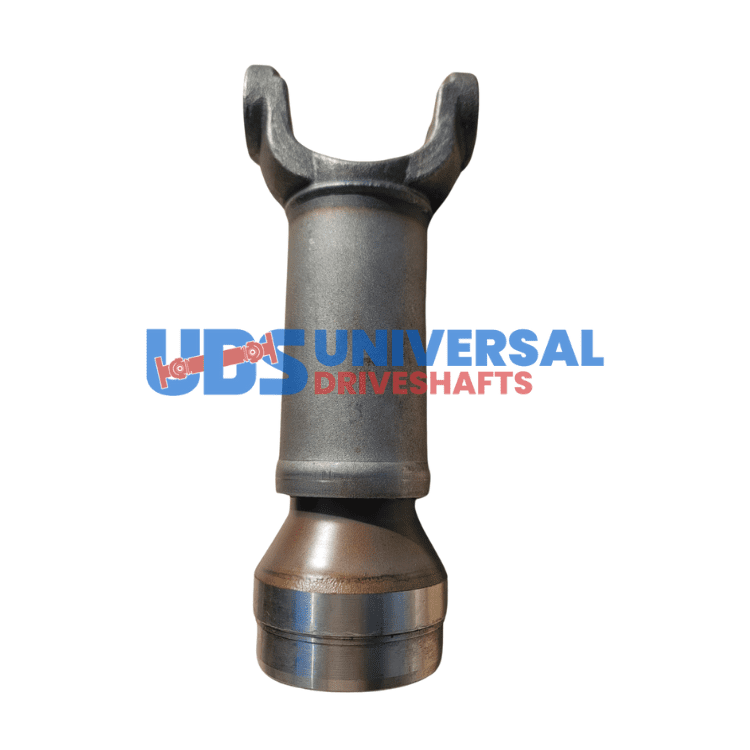

SA1480-3595 Splined Sleeve – Fits 3.500 x 0.095 1480 Series Slip Assembly 1480 / 68730 Series Reverse Slip Joint 9.7″ – REVERSIBLE ASSEMBLY UDS
$161.30
20 in stock
Description
SA1480-3595 is a robust splined sleeve designed to meet the demands of high-performance driveline applications. This component features a 1.875″ spline diameter and is part of the 1480 Series, known for its reliability in heavy-duty setups. With 30 splines, this sleeve provides a secure fit and excellent torque transfer, making it ideal for various automotive applications.
The butt diameter of 3.317″ ensures compatibility with standard tubing sizes, specifically designed to fit 3.500 x 0.095 tubes. This configuration allows for a seamless integration into your driveline system, ensuring that power is efficiently transmitted without slippage or misalignment. The critical length from the centerline to weld is 9.750″, which is essential for maintaining the correct alignment and balance within the assembly.
- Material: Steel for enhanced durability
- 30 splines for improved torque handling
- Designed for 1480 Series applications
- Fits to tube size: 3.500 x 0.095
- CL to Weld measurement: 9.750″ for precise installation
When installing the SA1480-3595, ensure that the mating components are clean and free of debris to prevent premature wear. Regular inspection of the splines for wear and damage can help maintain optimal performance. This splined sleeve is a critical component for ensuring the longevity and efficiency of your driveline system.
| Brand |
UDS |
|---|---|
| Series |
1480 |
| Splines count |
30 |
| Fits to tube |
3.500×0.095 |
| Butt dia |
3.317 |
| Splines dia |
1.875 |
| Notes |
CL to Weld: 9.750" |
| Material |
STEEL |
| Partn number |
SA1480-3595 |
More Parts from the same Category
Image | Price | Part # | Part Details | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Splined Sleeves & Slip Assemblies (29) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia: 3.854 End to weld: 4.910 Fits to tube: 4.00x0.083 Material: ALUMINUM Partn number: 2-55-278X Remaining stock: <10 Series: 1330 Splines count: 22/23 Butt dia: 3.854 End to weld: 4.910 Fits to tube: 4.00x0.083 Material: ALUMINUM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Remaining stock: '+10 Partn number: 2133-202 Series: BMW & MORE Material: STEEL Splines count: 27 Splines dia: 1.160 Butt dia: 1.844 End to weld: 3.625 Remaining stock: '+10 Partn number: 2133-202 Series: BMW & MORE Material: STEEL | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia: 2.375 End to weld: 3.665 Material: STEEL Partn number: 2133-27 Remaining stock: >10 Series: BMW & MORE Splines count: 27 Splines dia: 1.198 Butt dia: 2.375 End to weld: 3.665 Material: STEEL Partn number: 2133-27 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia: 4.744 End to weld: 6.909 Fits to tube: 4.960x0.118 Material: STEEL Partn number: 250-55-31X Remaining stock: <10 Series: SPL170 - SPL250 Splines count: 36/38 Butt dia: 4.744 End to weld: 6.909 Fits to tube: 4.960x0.118 Material: STEEL | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia: 1.392 End to weld: 2.875 Fits to tube: 1.625X0.120 Material: STEEL Partn number: 2833-223 Remaining stock: <10 Series: MERCEDES Splines count: 22 Butt dia: 1.392 End to weld: 2.875 Fits to tube: 1.625X0.120 Material: STEEL | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

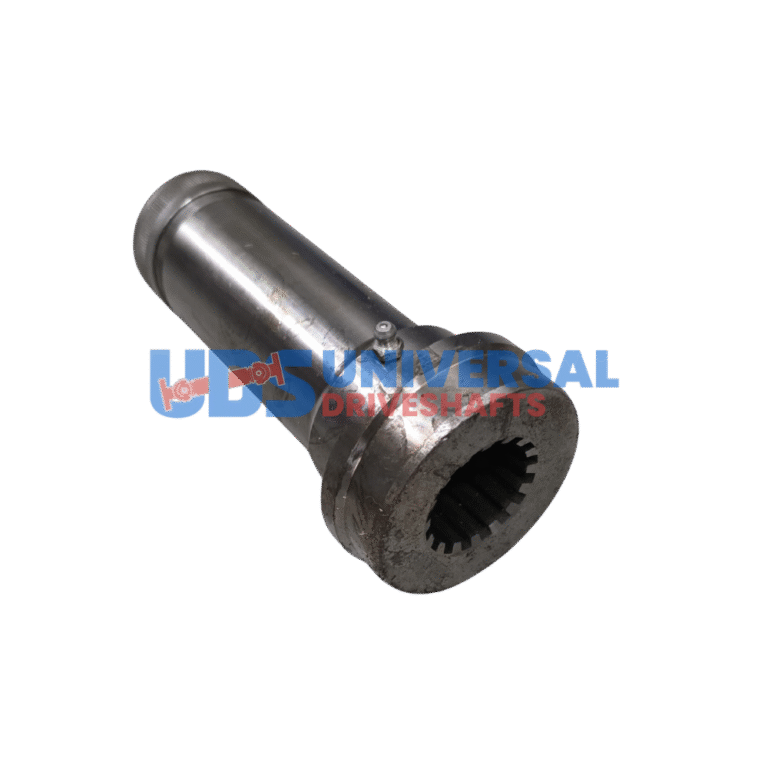

 | Butt dia: 2.844 End to weld: 6.125 Fits to tube: 3.000x0.083 Material: STEEL Partn number: 3-55-36 Remaining stock: <10 Series: MULTIPLE Splines count: 16 Butt dia: 2.844 End to weld: 6.125 Fits to tube: 3.000x0.083 Material: STEEL | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
