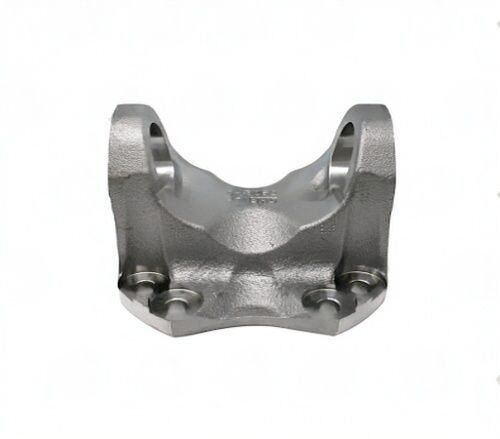

P8-2-109 – Flange Yokes – 1880 Series – Bolt Circle Dia 8.250" – Bolt Hole Dia 0.625 - Image 1

Click to enlarge

P8-2-109 – Flange Yokes – 1880 Series – Bolt Circle Dia 8.250″ – Bolt Hole Dia 0.625

SKU: P8-2-109

$219.27

0 in stock

15 People watching this product now!

Description

The 8-2-109 Flange Yoke, from the 1880 Series, is built for heavy-duty driveline applications. It features a robust 9.562-inch flange or swing diameter and an 8.250-inch bolt circle diameter. The yoke includes 8 drilled bolt holes, each with a diameter of 0.625 inches. The center pilot hole has a diameter of 7 inches and is designed with a male pilot. This yoke supports a U-joint width of 8.094 inches and a bearing cap diameter of 2.188 inches. The distance from the center of the U-joint bore to the face of the flange is 3.500 inches, making it suitable for demanding applications requiring substantial strength and durability.

Additional information

Bolt circle dia	8.250
Bolt hole dia	0.625
Cj to flat	3.500
Partn number	P8-2-109
Pilot dia	7.000 , M
Series	1880
Bolt Holes	8
