N919279G – Cv Double Joints Heads – 1310 CV FLANGE Series – Bolt Circle Dia 3.500″ – Butt Dia 2.344
$498.63
0 in stock
20
People watching this product now!
Description

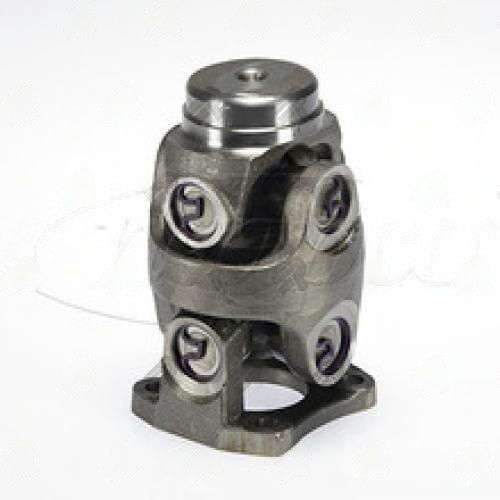

N919279G CV double joint head. 3.500 bolt circle | 2.000 pilot | 2.344″ butt dia | 5.75″ end-to-weld | fits 2.500X0.083 tube. High-angle driveshaft CV assembly — pilot and bolt circle must match.
Full Description
The N919279G CV double joint head assembly includes the flange, ball socket, and centering mechanism. Pilot diameter and bolt circle must match your application flange exactly.
N919279G CV Double Joint Head -- Series: 1310 CV FLANGE. Dimensions
The N919279G CV double joint head specs: 3.500 bolt circle | 2.000 pilot | 2.344" butt dia | 5.75" end-to-weld | fits 2.500X0.083 tube. Series: 1310 CV FLANGE. Pilot diameter and bolt circle must match your flanged connection point.
CV head assemblies are not universal -- bolt circle and pilot diameter are specific to the vehicle's differential or transfer case flange. Measure before ordering.
Key Features
- Series: 1310 CV FLANGE -- CV head series designation
- Bolt circle: 3.500 -- must match flange bolt pattern exactly
- Pilot dia: 2.000 -- centers head on flange, critical for CV centering
- Butt dia: 2.344" -- tube connection point
- End-to-weld: 5.75" -- weld-in dimension for shaft length calculation
- Tube compatibility: 2.500X0.083
- CV double joint design -- allows high driveshaft operating angles without velocity variation
Specifications
- SKU: N919279G
- Brand: UDS
- Series: 1310 CV FLANGE
- Bolt Circle: 3.500
- Pilot Dia: 2.000
- Butt Dia: 2.344"
- End to Weld: 5.75"
- Tube Fit: 2.500X0.083
Additional information
| Bolt circle dia |
3.500 |
|---|---|
| Bolt hole dia |
490 |
| Butt dia |
2.344 |
| End to weld |
5.75 |
| Partn number |
N919279G |
| Pilot dia |
2.000 |
| Style series |
1310 CV FLANGE |
| Tube dia wall |
2.500X0.083 |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cv Double Joints Heads (24) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Partn number 027SG80002 Pilot dia 3.819 Bolt circle dia 3.386 Bolt hole dia 330 Notes Fits 98-04 Mercedes ML320/ML350 front shaft at diff and rear shaft at transfer case Style series CVJ Tube dia wall 2.500X0.083 Butt dia 2.344 End to weld 4.375 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.386 Bolt hole dia 330 Notes Fits 01-05 Ford Escape/Mazda Tribute rear shaft at transaxle Partn number 027SG80004 Pilot dia 3.937 Style series CVJ Tube dia wall 2.500X0.065 Butt dia 2.375 End to weld 6.125 COMPRESSED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.583 Bolt hole dia 330 Butt dia 1.571 End to weld 4.75 Notes Fits 97-98 Ford Ranger/Explorer at transfer case Partn number 032SG80002 Pilot dia 4.094 Style series CVJ Tube dia wall 1.750X0.095 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia N/A Bolt hole dia N/A Butt dia 2.344 End to weld N/A Notes 25 Spline, AUDI Partn number 2552-8780 Pilot dia N/A Style series CVJ Tube dia wall 2.500X0.083 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.386 Bolt hole dia 330 Butt dia 2.375 End to weld 6.125 COMPRESSED Notes Fits 01-05 Ford Escape/Mazda Tribute rear shaft at transaxle Partn number 2690-100 Pilot dia 3.937 Style series CVJ Tube dia wall 2.500X0.065 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia N/A Bolt hole dia N/A Butt dia 2.344 End to weld 3.250 Notes 34 Spline, M39X1.5 THREADED, BMW Partn number 2752-8734 Pilot dia 1.614 Style series CVJ Tube dia wall 2.500X0.083 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia Blank Bolt hole dia N/A Butt dia 2.440 End to weld 5.75 Notes Toyota 1510 SERIES Partn number 2990-1839B Pilot dia 1.808 Style series 1510 Tube dia wall 2.560 x 0.067 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.386 Bolt hole dia 330 Butt dia 2.344 End to weld 4.375 Notes Fits 98-04 Mercedes ML320/ML350 front shaft at diff and rear shaft at transfer case Partn number 3190-100 Pilot dia 3.819 Style series CVJ Tube dia wall 2.500X0.083 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.583 Bolt hole dia 330 Butt dia 1.571 End to weld 4.75 Notes Fits 97-98 Ford Ranger/Explorer at transfer case Partn number 3190-107 Pilot dia 4.094 Style series CVJ Tube dia wall 1.750X0.095 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.575 REC Bolt hole dia 331 Butt dia 2.435 End to weld 5.75 Notes Toyota/1310CV conversion, includes increase bushing for OEM tubing Partn number 3190-181 Pilot dia 1.808 Style series 1310 CV FLANGE Tube dia wall 2.560X0.067 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
