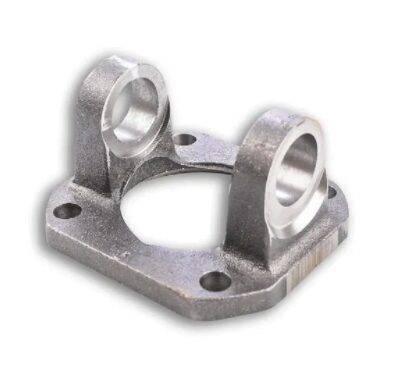

N3R-2-8268 – Flange Yokes – 3R Series – Bolt Circle Dia 4.250″ – Pilot Dia 3.125-F

Replacing a worn or damaged flange yoke starts with getting the right part. The N3R-2-8268 flange yoke is dimensioned for one bolt circle, one pilot diameter, and one drivetrain series — 3R series. A mismatched bolt circle means the yoke won't seat flat. A wrong pilot means the driveshaft runs off-center. The N3R-2-8268 flange yoke removes both risks.

N3R-2-8268 Flange Yoke — 3R Series Specifications & Fitment

The 3R series covers metric 3-bolt flange — European and import platforms. The N3R-2-8268 flange yoke specs: 4.250 bolt circle | 3.125-F pilot | 4x0.455 bolt holes | 1.687" CJ-to-flat. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.

Before ordering the N3R-2-8268 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: PTI. Verify, then order.

Key Features

• Series: 3R — built for metric 3-bolt flange — European and import platforms
• Bolt circle: 4.250 — must match axle/diff flange hole pattern exactly
• Pilot dia: 3.125-F — centers yoke on companion flange, no play allowed
• 4 bolt holes at 0.455 — verify hole count and size
• CJ-to-flat: 1.687" — affects driveshaft working angle clearance
• Brand: PTI — direct-fit replacement

Specifications

• SKU: N3R-2-8268
• Brand: PTI
• Series: 3R
• Bolt Circle: 4.250
• Pilot Dia: 3.125-F
• Bolt Holes: 4
• Bolt Hole Dia: 0.455
• CJ to Flat: 1.687"
